WIFI/APP Laser Engraver Machine 10W Output Power Laser Cutter DIY Laser Engraver for Wood and Metal, Paper, Acrylic, Tiles, MDF

Features:

▶  The Latest COS technology: Use the beam combiner, we have successfully merged the laser beams from two 5W chips into two, resulting in smaller and more powerful beams. This has significantly increased the energy density, allowing for stronger cutting capabilities, especially on harder materials.Can Cut :20mm Light Wood /30mm Dark Acrylic/5mm MDF

▶  Upgraded Laser Engraving with Air Assist System: The Algolaser Alpha 10W is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

▶  Excellent Engraving Performance: Algolaser Alpha 10W laser pursues the ultimate cutting speed/engraving speed 500MM/SECOND(REAL SPEED), suitable for professionals, shops or factoriy; It can cut 20mm pine wood /10cm plywood/8.7mm bamboo/5mm MDF at one time. And making it reach industrial-grade engraving accuracy with extremely solid and high-precision new nylon rollers to ensure 7*24h non-stop operation. 400*400mm large-area engraving range can meet your various engraving needs.

▶  Replaceable protective lens: Adopts innovative replaceable lens, greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from Algolaser

▶  Eye Protection and Safety Design:  Equipped with a detachable eye shield, which will not dazzle even without glasses. If you don’t need it, you can easily disassemble it. Isolate fire hazards. There is a very safe and eye-catching Emergency Stop Switch on the machine, you can directly and quickly turn off the power in an emergency. Safety Lock (Keep the Key, Professional Use Only).

▶  Sturdy and Durable Frame: The Algolaser Alpha 10W is made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, New design nylon rollers 7*24h non-stop operation with unparalleled durability, outlasting regular rollers by 5 times. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.

▶  Express Your Inspiration With Colorful Creations:10W laser beam carries more energy, produces vibrant colors on metallic surfaces.500+ engraving in different colors.

Specification:

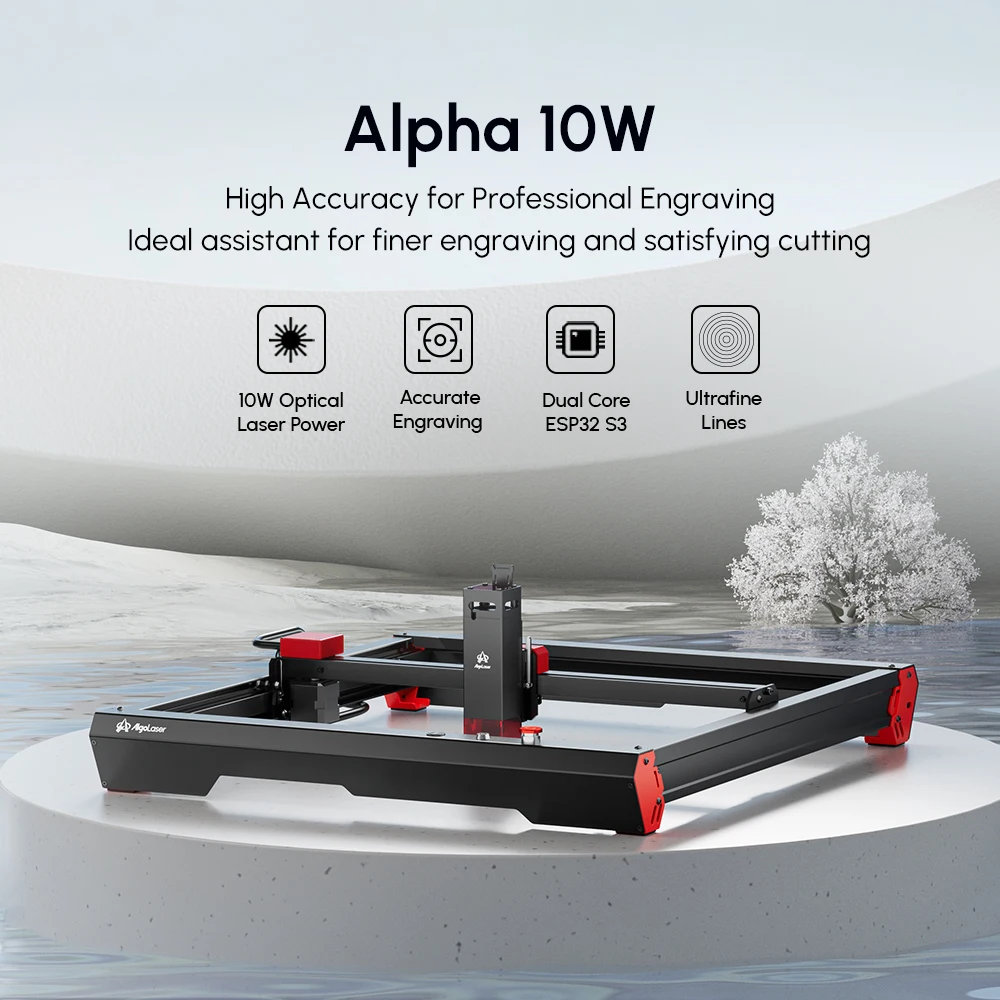

Model: Algolaser Alpha 10W

Power Input: 100V-240V (Compatible) 50/60Hz 24V/6A

Engraving accuracy: 0.005mm

Engraving area size: 440*415mm

Machine power: about 96W

Diode laser output power: 10W (note that this is light energy not electrical energy)

Laser focus: 0.08×0.07mm

Laser wavelength 455±5nm

Focusing method: Spring-loaded Mechanical Focus

Laser protection cover: Professional Focusing Optical Glass (Fused Silica & H-K9L)

Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone, food, bamboom, glass, acrylics.

Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards

Operating software: LaserGRBL, LightBurn, Algolaser-developed App, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.

Data transmission method: Wifi (2.4G), TF Card, USB ,WebUI

Package Size:  87*28*29cm

Package Weight: 9.8kg
