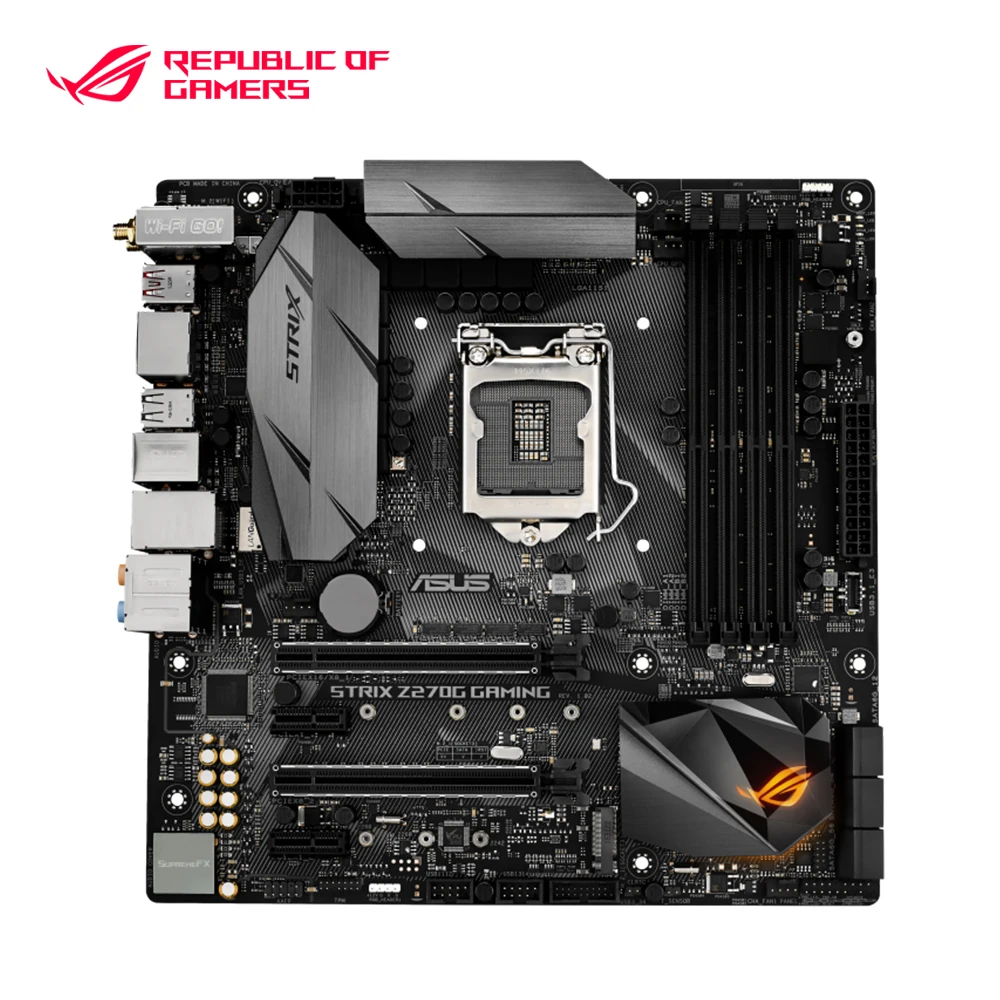

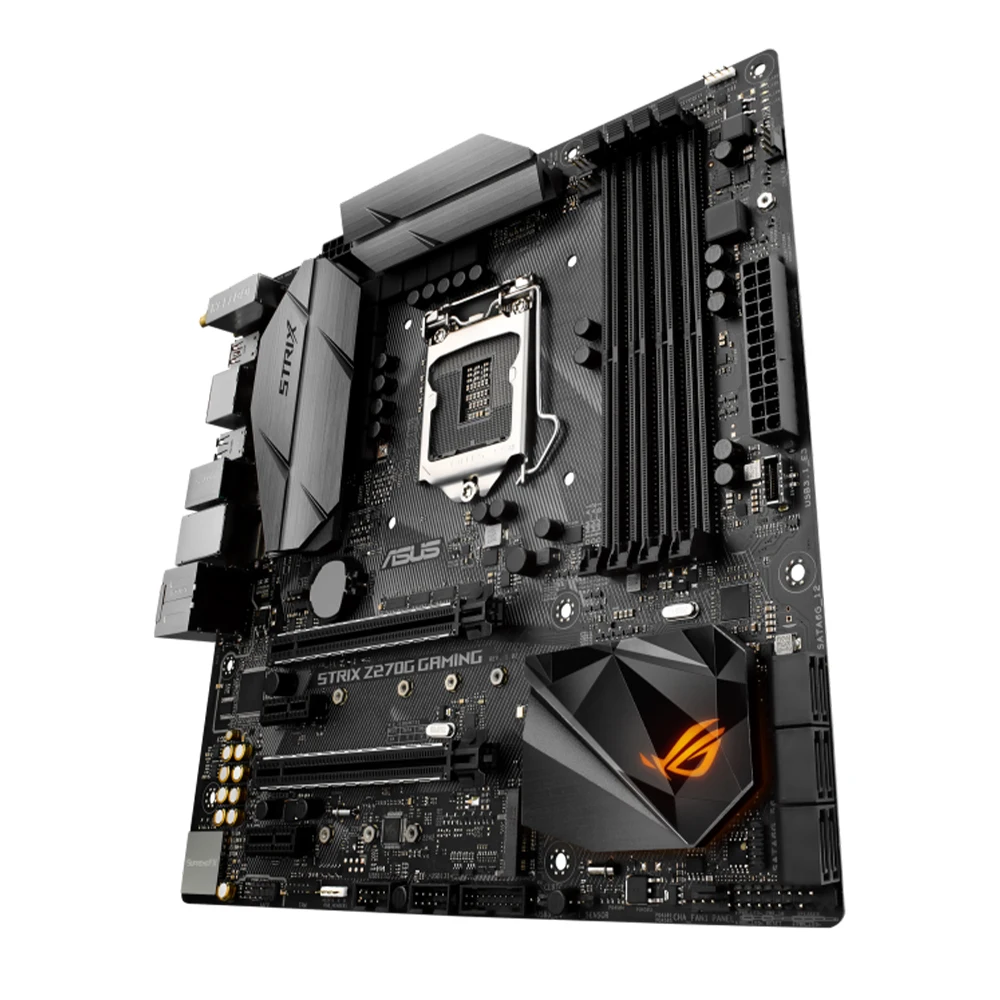

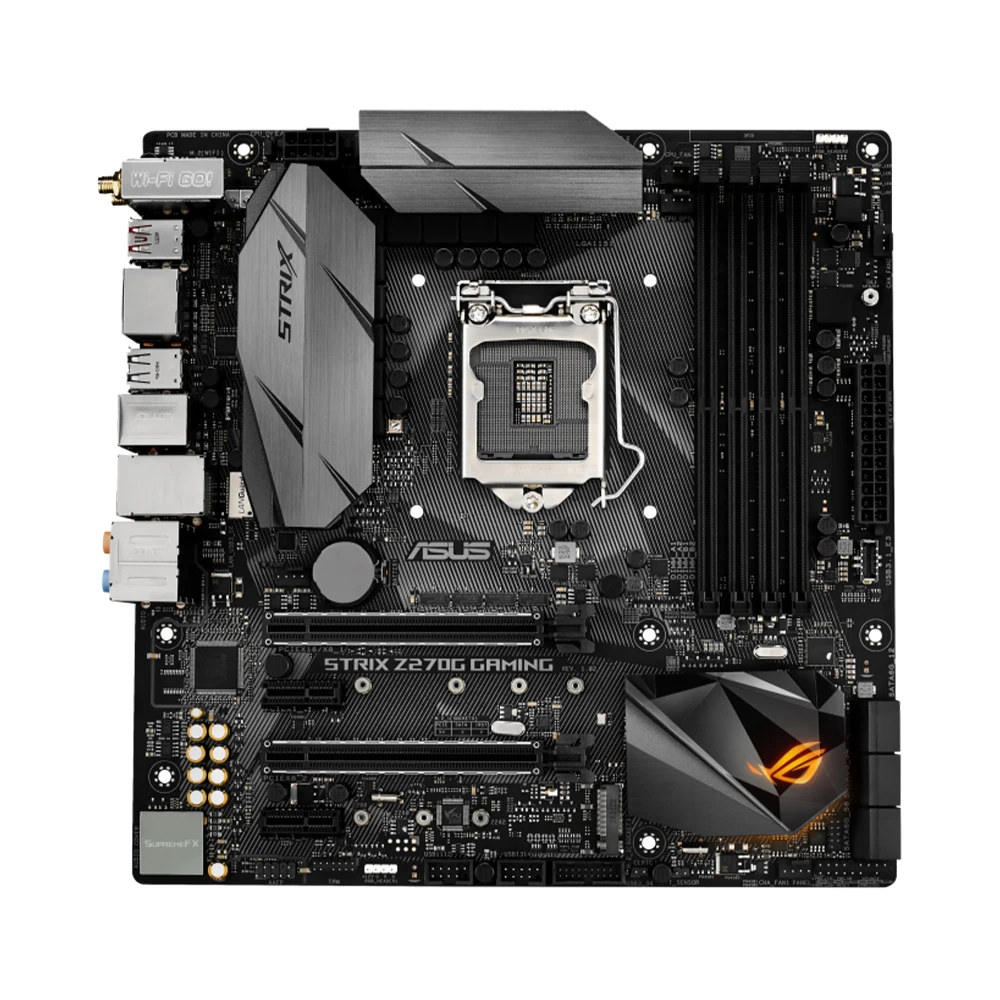

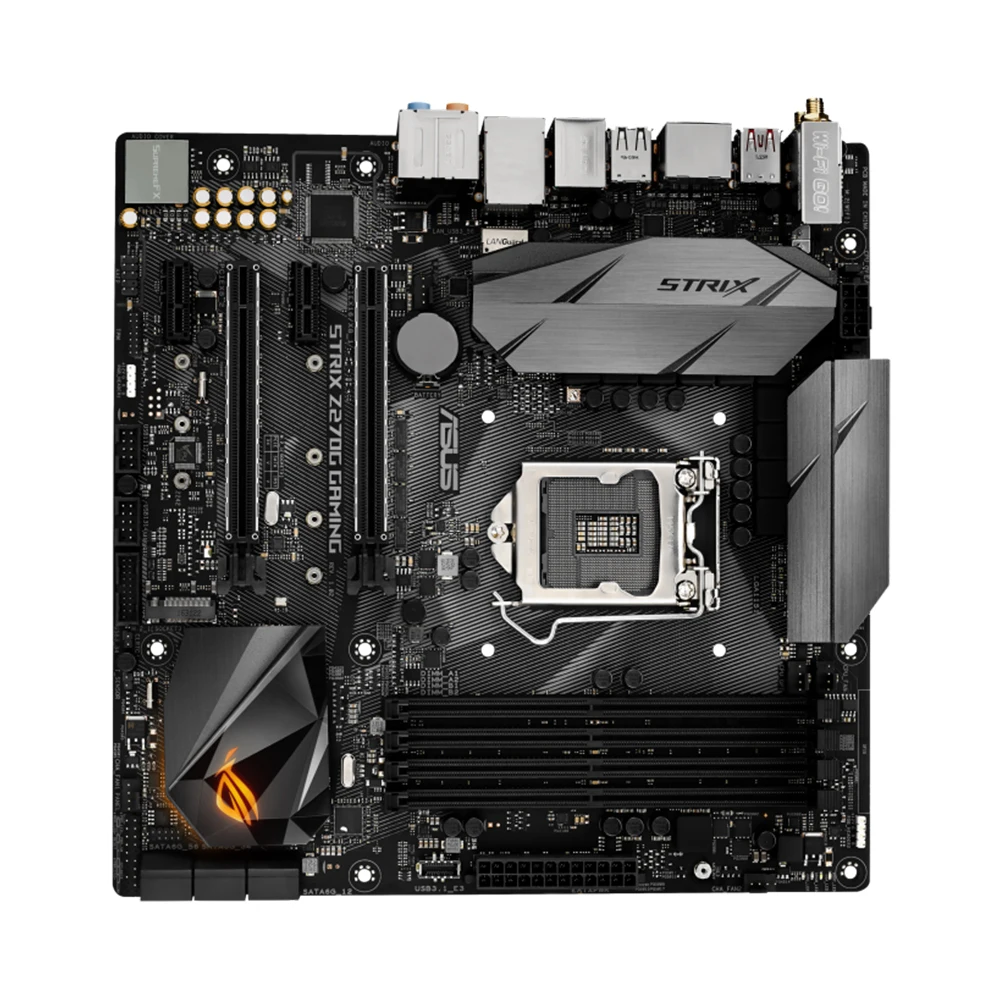

Used Motherboard ASUS STRIX Z270G GAMING With LGA 1151 Socket for i7 7700K Supports 4x DIMM Max. 64GB DDR4 Micro ATX Form Factor

Description



Motherboard chip

Integrated chip sound card/network card

Main chipset Intel Z270

Chipset description uses Intel Z270 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip integrated SupremeFX S1220A 8-channel sound effect chip

Network card chip onboard Intel I219V gigabit network card

Processor specifications

CPU type 7th/6th generation Core i7/i5/i3/Pentium/Celebron

CPU slot LGA 1151

CPU description supports Intel 14nm processors

Memory specifications

Memory type 4xDDR4 DIMM

Maximum memory capacity 64GB

Memory description supports dual channel DDR4 3733 (overclocking)/3600 (overclocking)/4133 (O.C.)/3466 (overclocking)/4000 (O.C.)/3400 (overclocking)/3866 (O.C.)/333 (overclocking)/3300 (overclocking)/3200 (overclocking)/3000 (overclocking)/2800 (overclocking)/2666 (overclocking)/2400 (overclocking)/2133 MHz memory

Storage Expansion

PCI-E Standard PCI-E 3.0

PCI-E slot 2 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot

Storage interface 2 x M.2 interface, 6 x SATA III interface

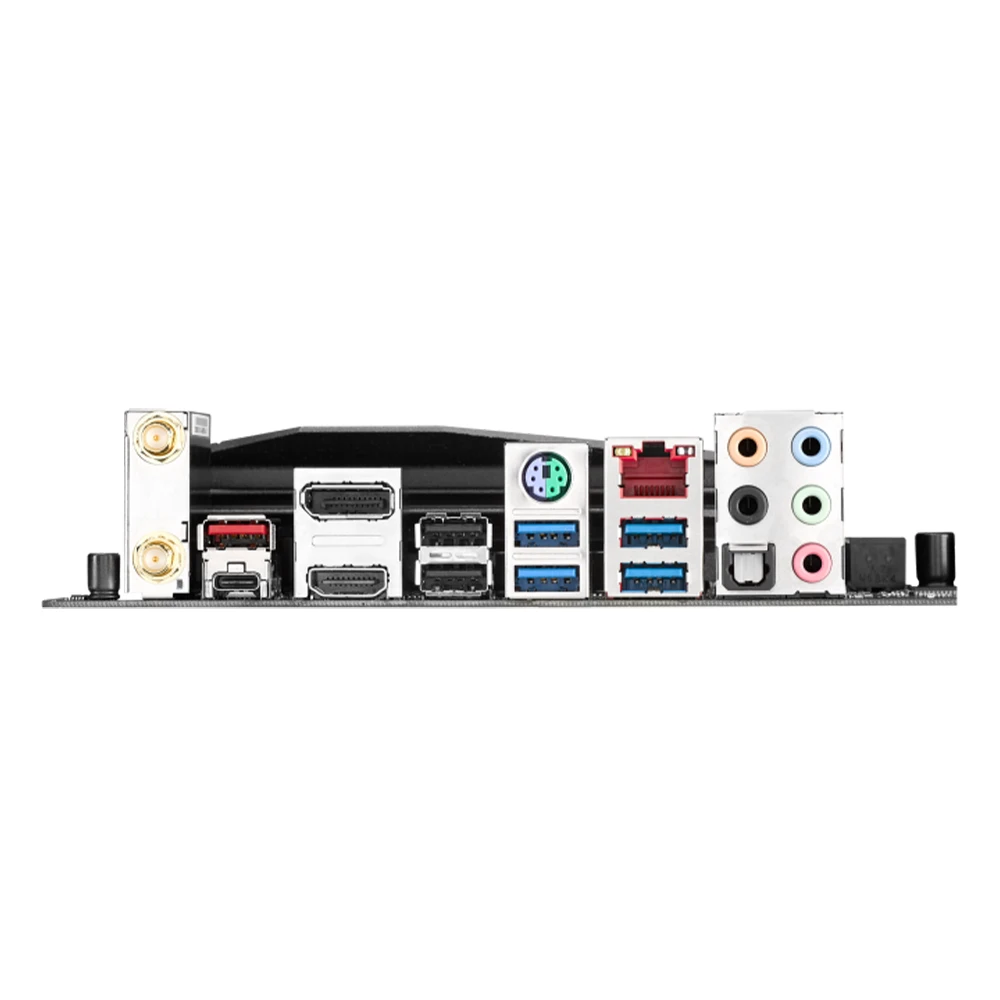

I/O interface

USB interface 1 x USB 3.1 interface, 1 x USB 3.1 Type-A interface, 1 x USB 3.1 Type-C interface, 6 x USB 3.0, 6 x USB 2.0 interface

Video interface 1 x Display Port interface, 1 x HDMI interface

One 8-pin power interface and one 24 pin power interface

Other interfaces: 1 x RJ45 network interface, 1 x fiber optic interface, audio interface, 1 x PS/2 keyboard and mouse universal interface

Plate type

Motherboard type Micro ATX board type

Dimensions 24.4 × 24.4cm

Used Motherboard ASUS STRIX Z270G GAMING With LGA 1151 Socket for i7 7700K Supports 4x DIMM Max. 64GB DDR4 Micro ATX Form Factor
