Robotic Swimming Pool Vacuum Cleaner With 15m / 30m Cable Wall and Floor Cleaning Remote Control For Any Kinds Material Of Pool

R23,982R31,848

  Robotic Swimming Pool Vacuum Cleaner With 15m / 30m Cable Wall and Floor Cleaning Remote Control For Any Kinds Material Of Pool Description: The deep blue Robotic Pool Vacuum Cleaner with Favorable Price is a new type of effective cleaning equipment independently developed by our company. It has three parts, the cleaning machine, the power console and the control panel. The cleaning machine is controlled by computer and thoroughly scrubs the bottom and sides of the pool which continuously filtering water. It does not need to change water after cleaning utterly changes the traditional way of pool cleaning, which not only saves physical labor and expensive costs but also valuable water resources. The product originates at home and takes a lead in the world as a result of its high performance-to-price ratio. Function: 1).Automatic cleaning: the default mode is automatic while the machine is on power: when you power on the  machine, the default mode is automatic mode, but if you operate the remote control, the mode will change to manual mode.  2).Overall cleaning: the machine not only clean bottom of pool, but also clean wall, at the same time, the machine will filter water, the dirt will be collected into filter bag. (the default accuracy is 70um, you can select other accuracy of filter bag)  3).Timing cleaning: you can set the clean time with remote control, the machine will shut down when cycle time is over.  4).Manual cleaning: use the remote control to clean specific areas immediately.  5).Self protection out of water: impeller decelerates to stop in one second while the machine will be pulling out the water, in case of personal injury.  6).Stop protection: the machine will stop when the impeller is retarded by goods Technical Parameter: Input voltage: 220V /110V Rated power: 200W Cycle time: 0.5h/1/2h Cable Length: 15m/20m/25m Filter Capacity: 18m³/h Moving speed: 15m/min Grade of Waterproof: Host: IP68/Power Box: IP23/Remote Control: IP23 Working temperature: 10~32℃ Storage temperature: 0~40℃ Dimension(L*W*H): 456*462*280mm Packing(L*W*H): 578*570*400mm Net weight: 14KG Quality Control:100% tested Warranty:12 months Feature: 1. Use 2 track belts to go on walking transmission, simplifying the traditional multiple synchronous belt with tracked transmission mode.  2, Change the rotating shaft installation of traditional machine which adopts 16 high precision 440C stainless steel bearings,  3, Output end of walking motor adopts cross sliding shaft connector to connect.  4. Running becomes more smoothly, more stable, less energy consumption, and life compared to the traditional institutions increased by 300%.  5, Increase the stair climbing function  6, Increase the anti blocking function  7. Increase the temperature monitoring of motor-box function  […]

SKU: 1005003733725718
Category: ,

Description



Robotic Swimming Pool Vacuum Cleaner With 15m / 30m Cable Wall and Floor Cleaning Remote Control For Any Kinds Material Of Pool

Description:

The deep blue Robotic Pool Vacuum Cleaner with Favorable Price is a new type of effective cleaning equipment independently developed by our company. It has three parts, the cleaning machine, the power console and the control panel. The cleaning machine is controlled by computer and thoroughly scrubs the bottom and sides of the pool which continuously filtering water. It does not need to change water after cleaning utterly changes the traditional way of pool cleaning, which not only saves physical labor and expensive costs but also valuable water resources. The product originates at home and takes a lead in the world as a result of its high performance-to-price ratio.

Function:

1).Automatic cleaning: the default mode is automatic while the machine is on power: when you power on the  machine, the default mode is automatic mode, but if you operate the remote control, the mode will change to manual mode.

2).Overall cleaning: the machine not only clean bottom of pool, but also clean wall, at the same time, the machine will filter water, the dirt will be collected into filter bag. (the default accuracy is 70um, you can select other accuracy of filter bag)

3).Timing cleaning: you can set the clean time with remote control, the machine will shut down when cycle time is over.

4).Manual cleaning: use the remote control to clean specific areas immediately.

5).Self protection out of water: impeller decelerates to stop in one second while the machine will be pulling out the water, in case of personal injury.

6).Stop protection: the machine will stop when the impeller is retarded by goods

Technical Parameter:

Input voltage: 220V /110V

Rated power: 200W

Cycle time: 0.5h/1/2h

Cable Length: 15m/20m/25m

Filter Capacity: 18m³/h

Moving speed: 15m/min

Grade of Waterproof: Host: IP68/Power Box: IP23/Remote Control: IP23

Working temperature: 10~32℃

Storage temperature: 0~40℃

Dimension(L*W*H): 456*462*280mm

Packing(L*W*H): 578*570*400mm

Net weight: 14KG

Quality Control:100% tested

Warranty:12 months

Feature:

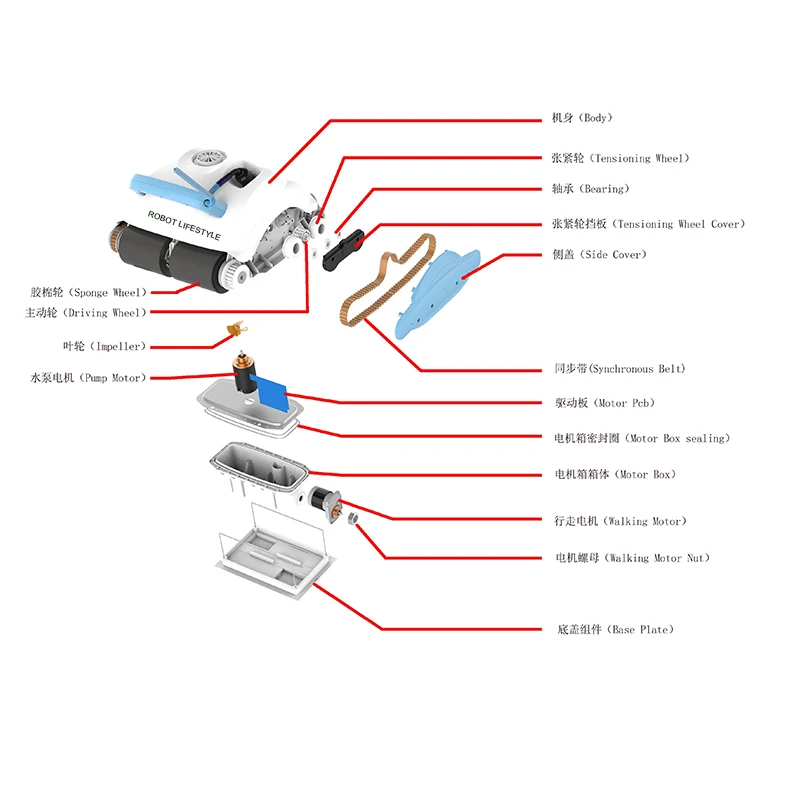

1. Use 2 track belts to go on walking transmission, simplifying the traditional multiple synchronous belt with tracked transmission mode.

2, Change the rotating shaft installation of traditional machine which adopts 16 high precision 440C stainless steel bearings,

3, Output end of walking motor adopts cross sliding shaft connector to connect.

4. Running becomes more smoothly, more stable, less energy consumption, and life compared to the traditional institutions increased by 300%.

5, Increase the stair climbing function

6, Increase the anti blocking function

7. Increase the temperature monitoring of motor-box function

8. Increase the water leakage detection of motor-box function

9, Improve the waterproof performance

10.The software from backstage supporter can be upgraded, maintenance

Work Priciple:

The Pool Vacuum Cleaner with Remote controller  is a new type of highly efficient swimming pool cleaning robot.

Through its advanced computer controlled program, it can clean the pool walls and bottom automatically.

At the same time, it fillters the pool water and gets rid of suspended particles.

Production Area and Warehouse:

Professional Workers use high-tech equipment to finsih the production of Robot Swimming Pool Cleaner

1)Test in the Pool

2)Quality Control

3)Assemble the Spare Parts

4)Enough Raw Materials in Stock

Using The Pool Cleaner

1. Place the Pool Cleaner into the pool until the sponge wheel is soft, Turn the Pool Cleaner upside downto release the air inside. The Pool Cleaner will sink to the bottom of the pool automatically.

2.Unscrew the socket safety cap and insert the floating cable plug into the socket of the Control Box.

Attach the control box to the caddy with the 2 screws.

3. Connect the Control Box to an outside AC power of 110v/240v 50/60Hz.

Notice: Do not allow the Control Box to come in contact with water.

Please ensure the Control Box is placed in a dry, shaded area.

4.Please press the reset button on the Residual Current Device(RCD) where fitted, and ensure the redstand by light comes on. Then press the red

power button on the Control Box or on the Remote Control.

NOTE: if the Control Box does not have an RCD, please press the red power button directly on the Control Boxor the Remote Control.

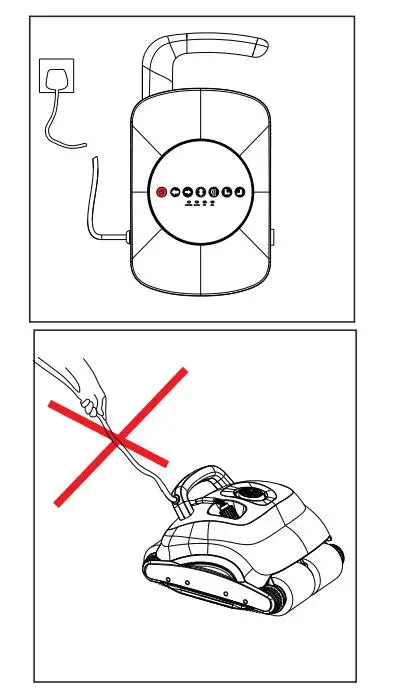

5.When the cleaning cycle is completed, Unplug the 200V/110v socket.

Pull the robot out of the pool by the handle on the Pool Cleaner.

NOTE: Do not lift the Pool Cleaner out of the water by using the floating cable.

6.Remove the Base Plate and clean the Filter Bag:
Unlock the Latches on the Base Plate and remove the Filter Bag from Base Plate, clean the Filter Bag. Once clean
put the Filter Bag onto its frame, put it back into the Pool Cleaner after the Filter Bag
is dry.
(Note: when re-fitting the Filter Bag to the Base Plate,
please ensure the short side “TAG” is at one of the short ends of the base plate. )

7.At the end of the cleaning cycle, wind the floating cable in a circle by hand and place it on the Pool Cleaner,and then store the Pool Cleaner in a dry, well-ventilated area. If you have a caddy, please put the Pool Cleanerfloating cable on the caddy.

Packing:

1.1 set/color box , 2 cartons/set,

2. Package in the production line

3. Side face and Front face of Package for robotic pool cleaner

Additional information

color

15m no caddy cart, 15m with caddy cart, 30m no caddy cart, 30m with caddy cart

Hign-concerned Chemical

None

Dust Box Capacity (L)

>2 L

Filter Type

Cyclone

Bag Or Bagless

Bagless

Cord Length (m)

15m

Timing Reservation

No

Remote Control

Yes

Special Suction Nozzle

Clean Cyclone Dust Collection Nozzle

Dust Storage Type

Fabric Dust Bag

Installation

Robot

Certification

ROHS,GS(消费电子),UL(纺织品),UR,CE

Voltage (V)

100-240V

Power (W)

<500w

Function

clean the floor and wall

Brand Name

Robot lifestyle

Origin

Mainland China

Cable length

15m

Clean area

100-200m2

Height of climb wall

1.8m

Clean width

23cm

Size

456*462*280mm

N.W/G.W

14/17KGS

Pool Types

Any type of in-ground pool

Input Voltage

100~240VAC, 49.3~60.5Hz

Rated power

200W

Cycle time

0.5h/1/2h

Filter Capacity

18m³/h

Moving speed

15m/min

Grade of Waterproof

Host: IP68/Power Box: IP23/Remote Control: IP23

Working temperature

10~32℃

Storage temperature

0~40℃

Quality Control

100% tested

Carrying Caddy Cart

No
