LASER TREE K1PRO Laser Engraver with 30W 40W Air Assist Laser Module Wood Engraving Cutting Machine CNC Woodworking DIY Tools

Description

LASER TREE K1PRO Laser Engraving Machine with 30W 40W Laser Module Wood Engraver Cutting Machine CNC Woodworking DIY Tools

Laser Engraving Machine–

LT-K1-PRO-30W/40W

LT-K1-PRO-30W/40W-KIT

LT-K1-PRO-30W/40W-KITB

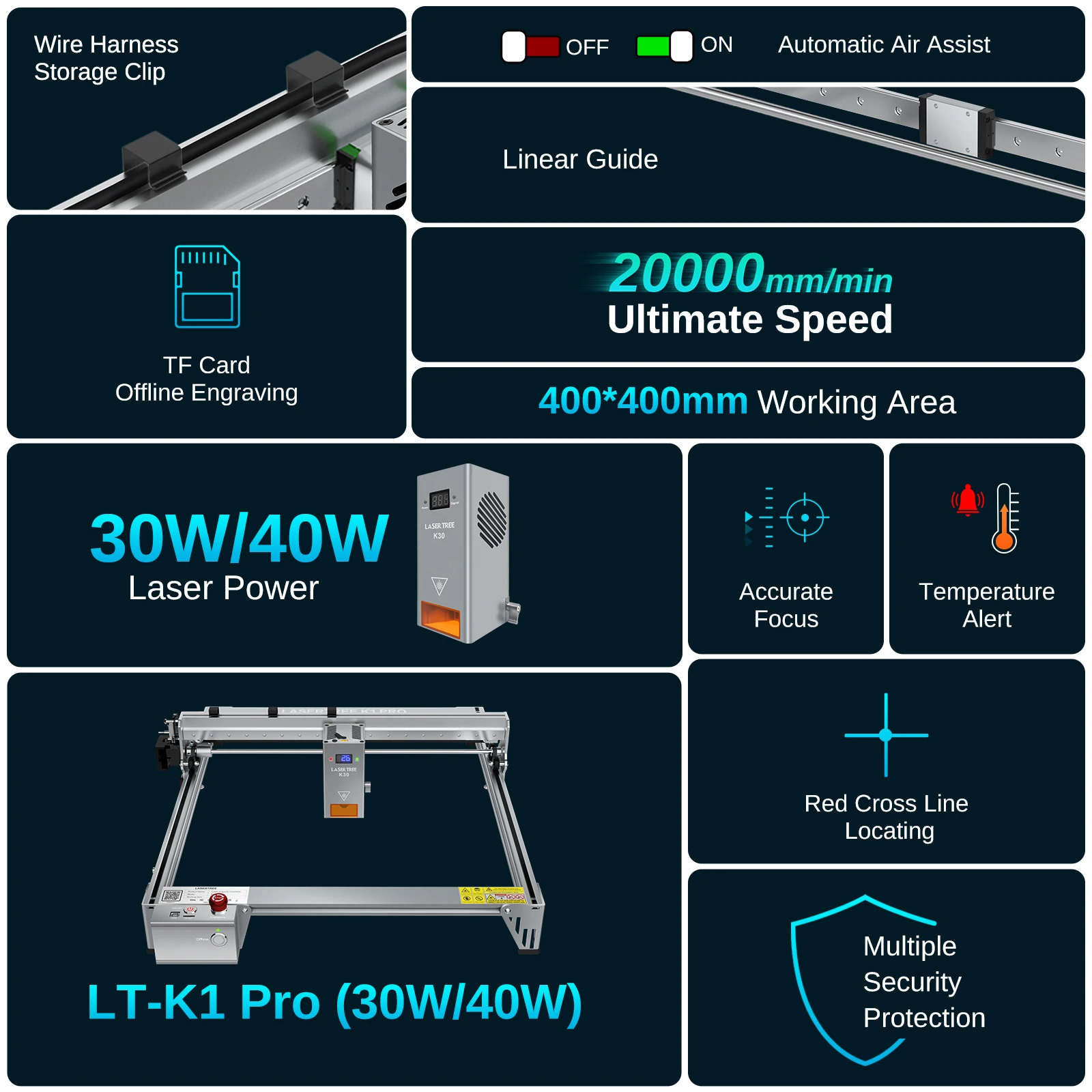

Laser Tree K1 PRO offers you a full set of accessories – laser engraving machine + 30W/40W laser head (KIT: + air pump + work plate;  KITB: + air pump + honeycomb panel)Laser Engraving Machine Features:

① With Wire Harness Storage Clip: It is convenient for organising and storing machine cables.

② TF Card Ofline Engraving

③ Working Area 400*400mm

④ Industrial Grade Linear Rail

⑤ With 30W/40W Optical Power Laser module

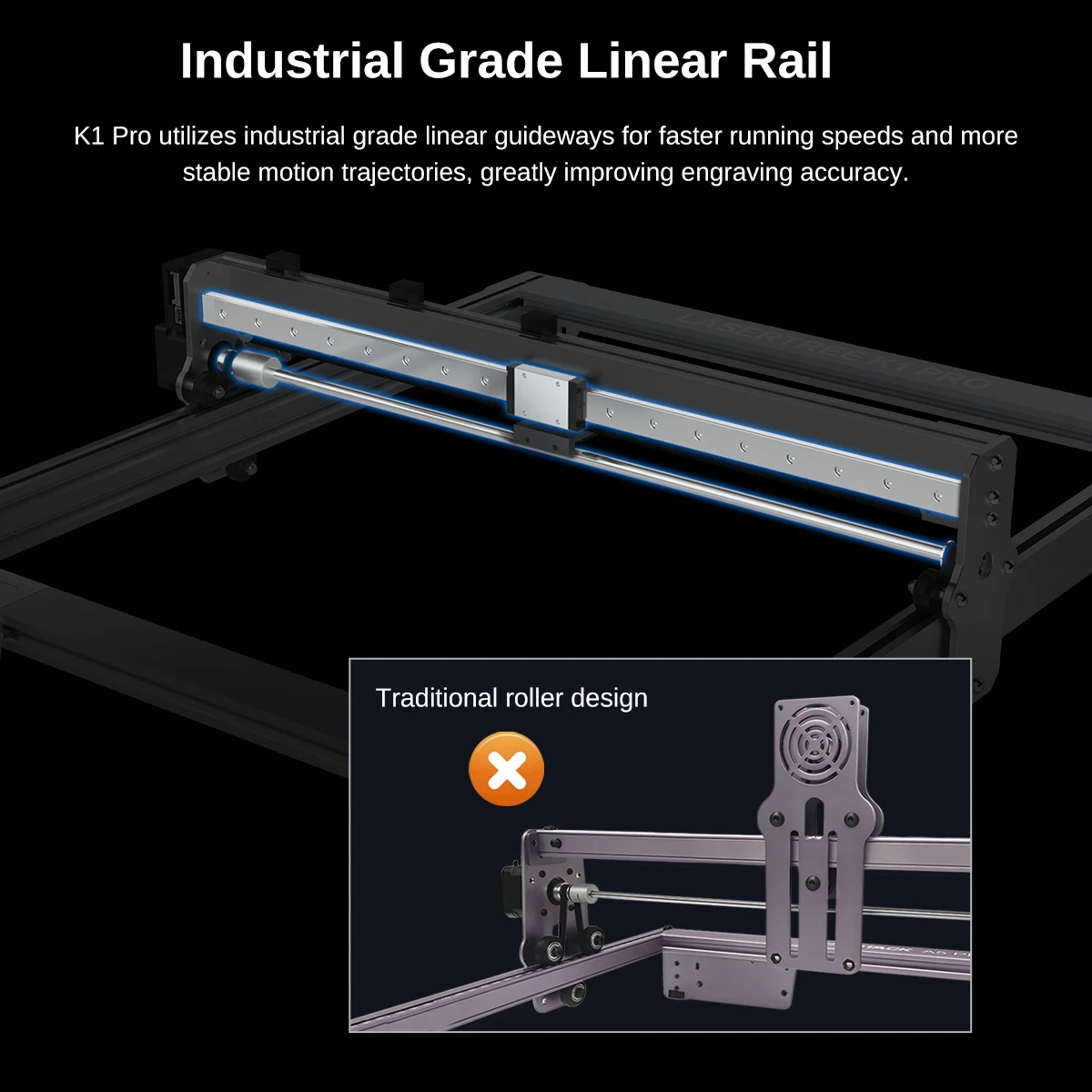

Industrial grade linear Rail

K1 Pro utilizes industrial grade linear guideways for faster running speeds and more stable motion trajectories, greatly improving engraving accuracy.LT-K30 Optical Power 30W+ Laser Module.

Built-in 6pcs 5.5W+ beam compressed laser diodes, which can provide up to 30W+ optical power to achieve fast and efficient cutting.Powerful Cutting Ability.

12mm basswood plywood：130mm/min ；1pass

20mm pine plywood : 95mm/min; 1pass

20mm black acrylic : 25mm/min; 1passLT-K40 Optical Power 40W+ Laser Module.

Built-in 8pcs 5.5W+ beam compressed laser diodes, which can provide up to 30W+ optical power to achieve fast and efficient cutting.15mm bass plywood：200mm/min ；1pass

30mm pine plywood : 55mm/min; 1pass

30mm black acrylic : 15mm/min; 1pass

9mm MDF: 150mm/min; 1pass

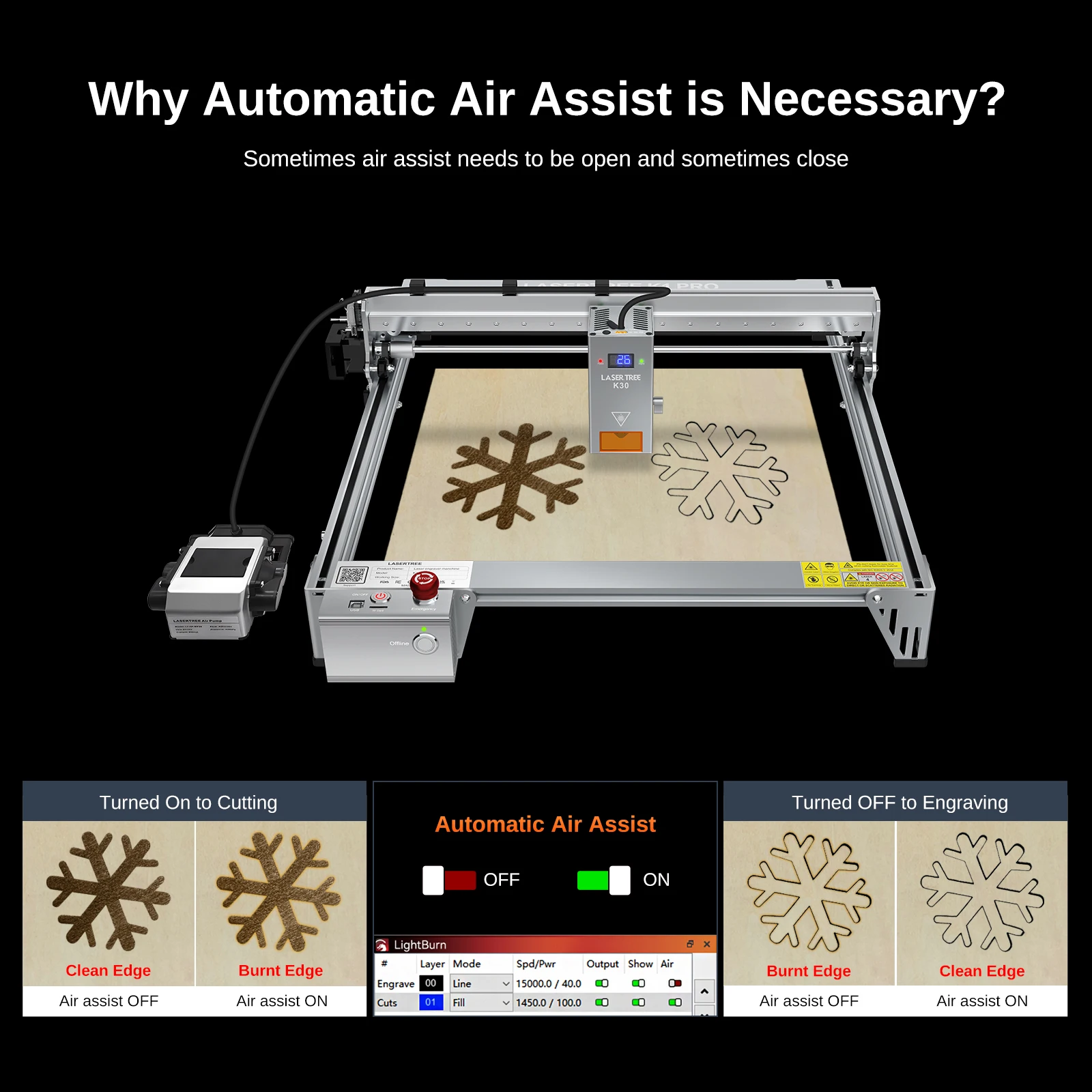

Upgraded Automatic Air Assist System:

The K1 PRO series is equipped with an air pump with low noise and air flow ≥26L/min, and can intelligently control the air assist switch through LightBurn software.

When cutting with this laser head, turning on the air assist system will blow air through the air nozzles. This will give you excellent cutting results.

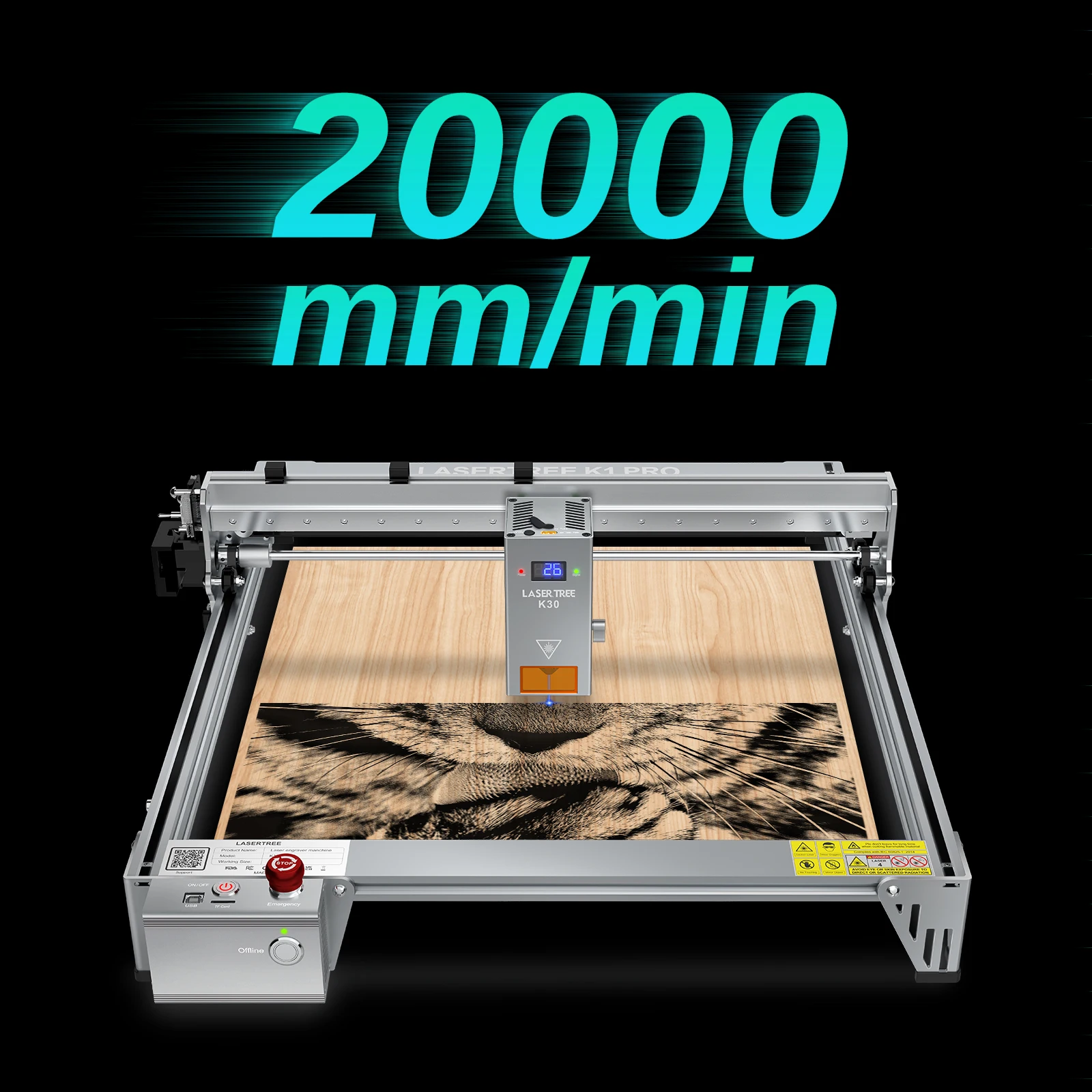

When engraving with this laser head, turning off the air assist system.UltimateEngraving Speed–20000mm/min

3 times engraving speed compare with 10W laser power module.

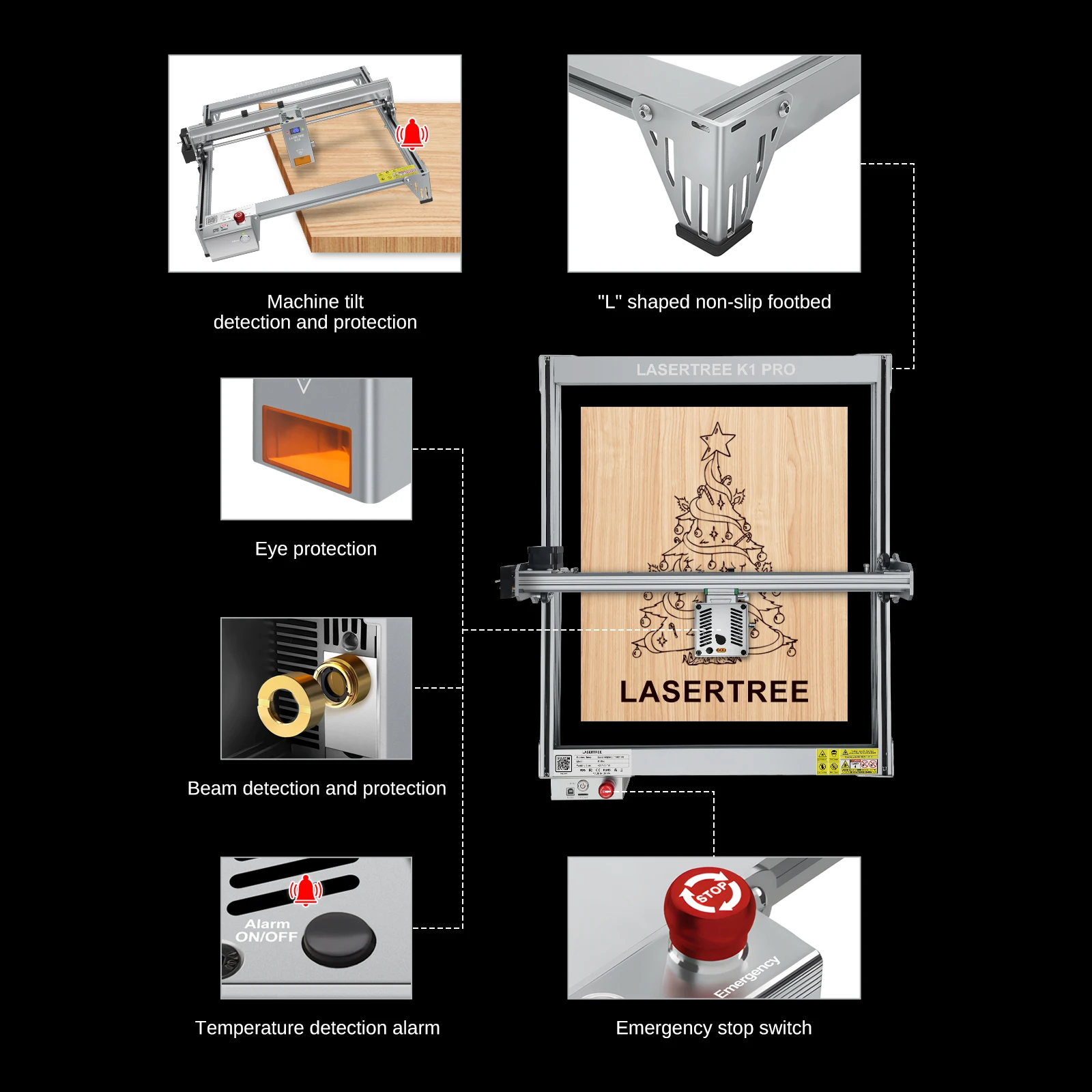

Machine Tilt Detection and Protection

When the engraving machine tilts while working, the power will automatically cut off; in emergency situations, you can press the emergency stop button.

“L” Shaped Non-slip Footbed

It provides protection pad to keep the engraver stable while working.

K30/K40 Laser Head Features

① Alarm Function: When an over-temperature alarm occurs, press once can turn off the buzzer alarm sound. When the working temperature of the laser module is higher than 55’C, the buzzer will sound an alarm. To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.

② Laser View Window: Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

③ Copper Core Protection Lens: Easy to clean and replace when the lens is contaminated or dusty.

④ Red cross line locating: The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

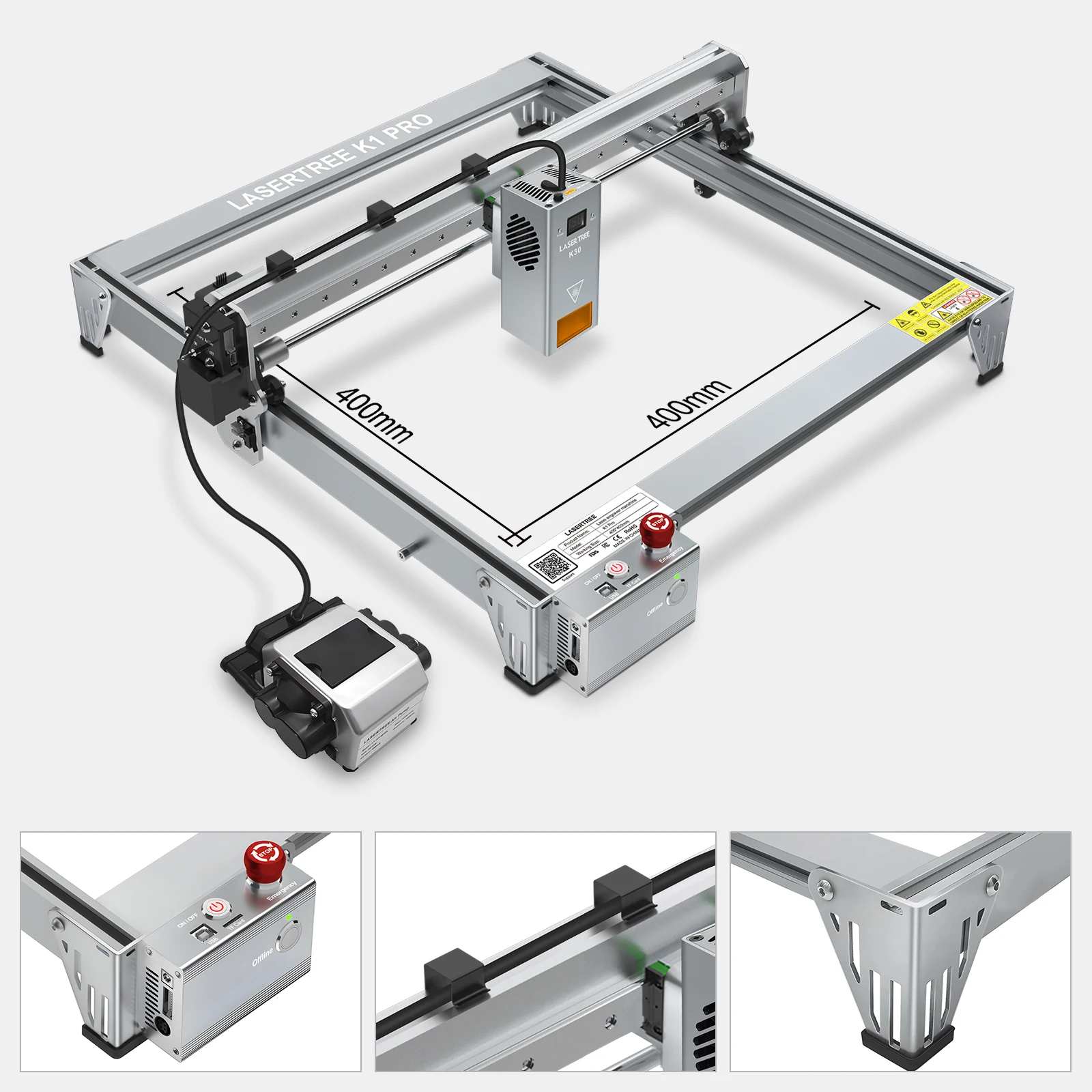

Working Area 400x400mm Unlimited Creativity With Extensive Compatibillity

Software: LightBurn, LaserGRBL

Operating System: Mac OS/WindowsLT-K1-PRO

Laser engraving machine+ Laser head LT-K1-PRO-KIT

Laser engraving machine+ Laser head + Air pump + Work plate

LT-K1-PRO-KITB

Laser engraving machine+Laser head: + Air pump + Honeycomb panel)
