GIGABYTE GA B550M DS3H Micro-ATX New AMD B550 DDR4 4266(OC)MHz M.2 128G PCI-E 4.0 Double Channel Socket AM4 Motherboard
Original price was: R4,442.R4,028Current price is: R4,028.
 The battery in the motherboard picture will be removed before shipment, because the use of battery is prohibited in China Post and CustomsThis product is brand new and comes with a one-year warranty period
Description
Â
The battery in the motherboard picture will be removed before shipment, because the use of battery is prohibited in China Post and CustomsThis product is brand new and comes with a one-year warranty period
Additional information
| Hign-concerned Chemical | None |
|---|---|
| RAID Supported | no |
| Processor compatibility | AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 5000 Series-R9,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3,AMD Ryzen 4000 Series-R9 |
| Usage Scenario | others |
| Special Function | none |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.1 /3.2 Gen 1 Connector,RGB Header,8-pin +12V Power Connector,OthersConnectors & Header,M.2_FAN Connector |
| Back I/O Ports | 1x RJ45,2x USB 3.2/3.1 Gen 1,PS/2,DVI-D |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 7.1 |
| Supports M.2 SSD | 2242,2280,2260,22110 |
| Number of M.2 | 1 |
| Number of SATA Ports | 4 |
| Storage Interface Type | SATA 3,M.2 (NVMe) |
| Number of PCI | 2 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 4 | 1 |
| Number of PCIe x 16 | 2 |

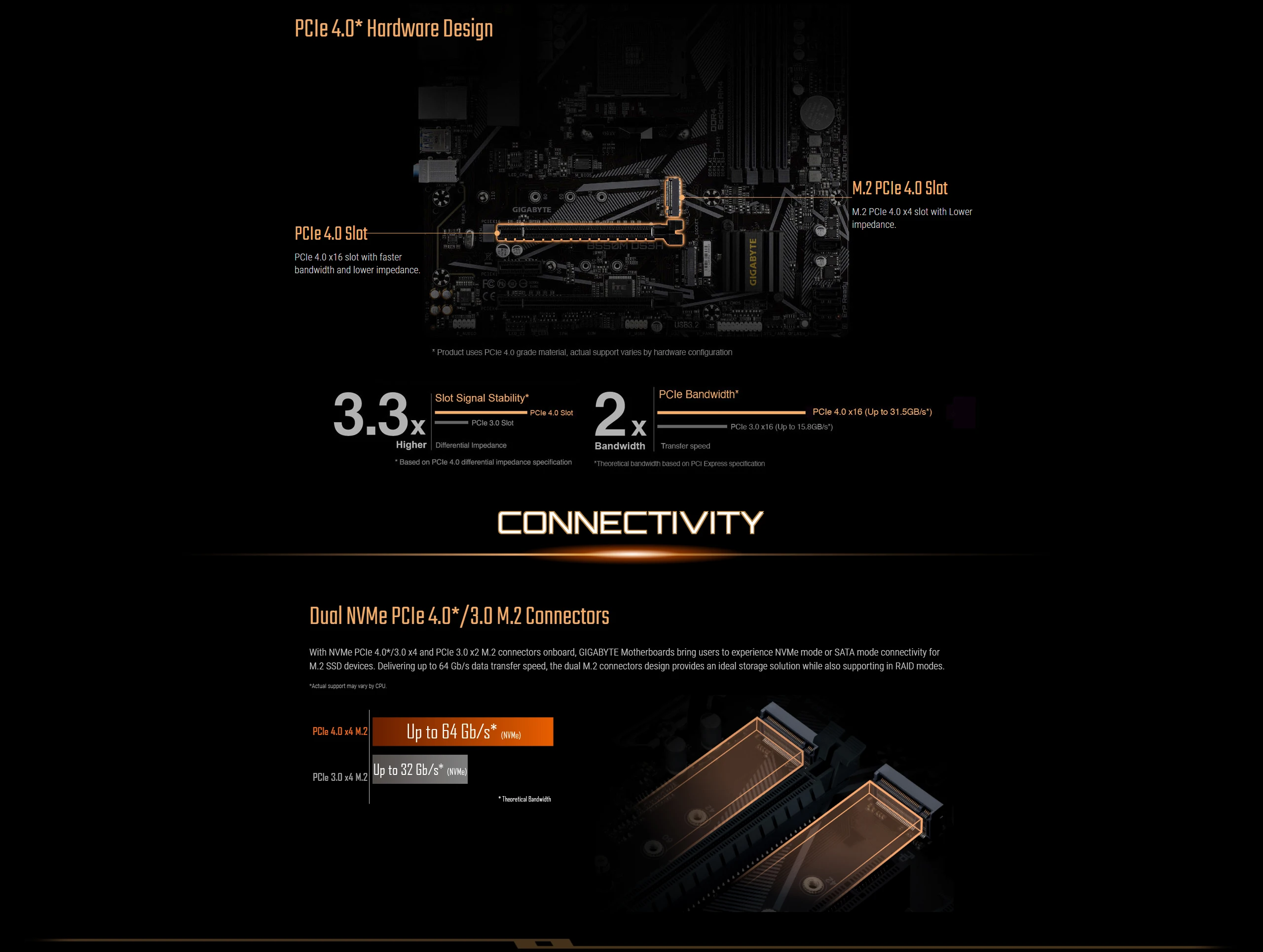

| PCI – E standards | PCI – E 4.0 |
| Number Of Memory Slots | 4 |
| Support Memory Type | DDR4 |
| Quality Certification | FCC |
| Memory channel | Double |
| Form Factor | others |
| Package | Yes |
| Maximum Ram Capacity | 128 GB |
| Chipset Manufacturer | AMD |
| With CPU | No |
| Chipset | AMD B550 |
| Application | Desktop |
| Socket Type | AM4 |
| Brand Name | Gigabyte |
| Origin | Mainland China |
| Certification | weee |
| Motherboard Warranty | 3 years warranty |
| Dimension | 24.4 cm x 24.4 cm |
| Memory slot | Supports 4 X 32G memory at the most |
| Bundle | Motherboards |
