Geeetech GCW01 Washing and Curing Machine For UV 3D Printer 0~60min 12V 48W

Description

GeeetechGCW01Washing and Curing Machine

Description：

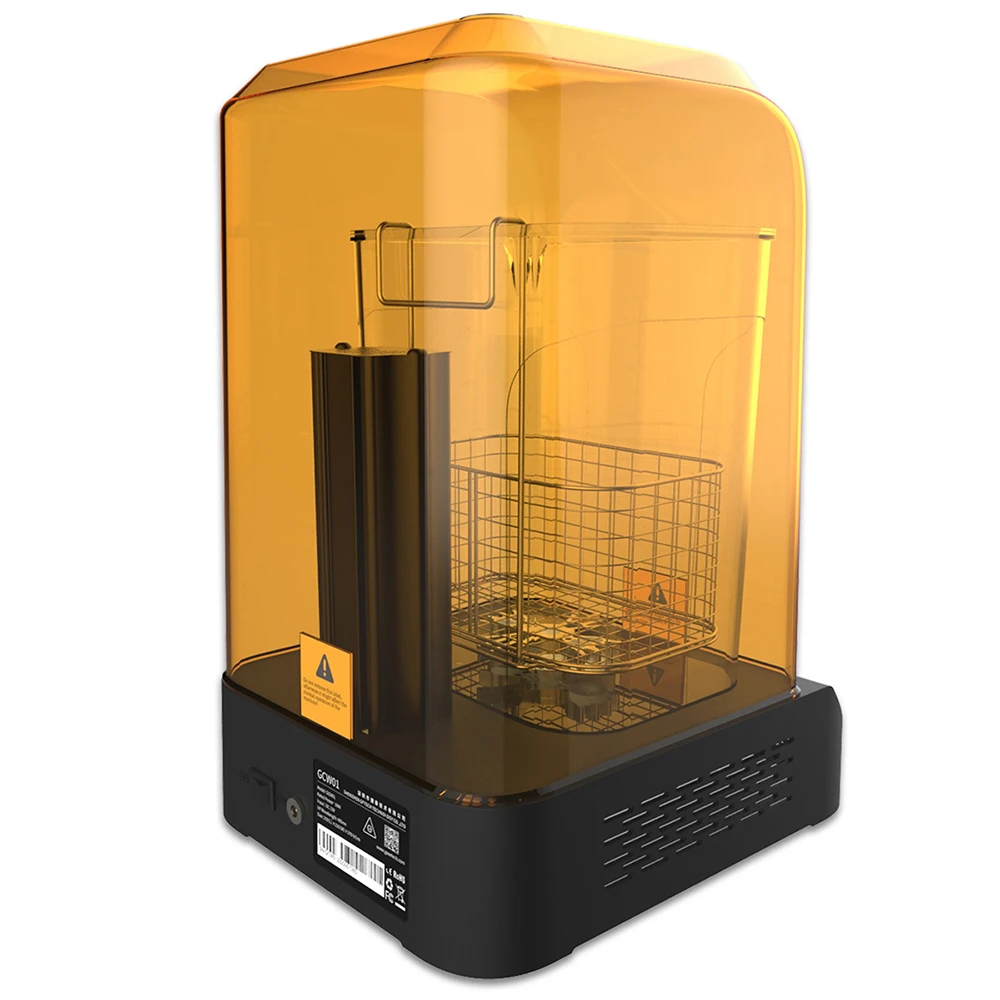

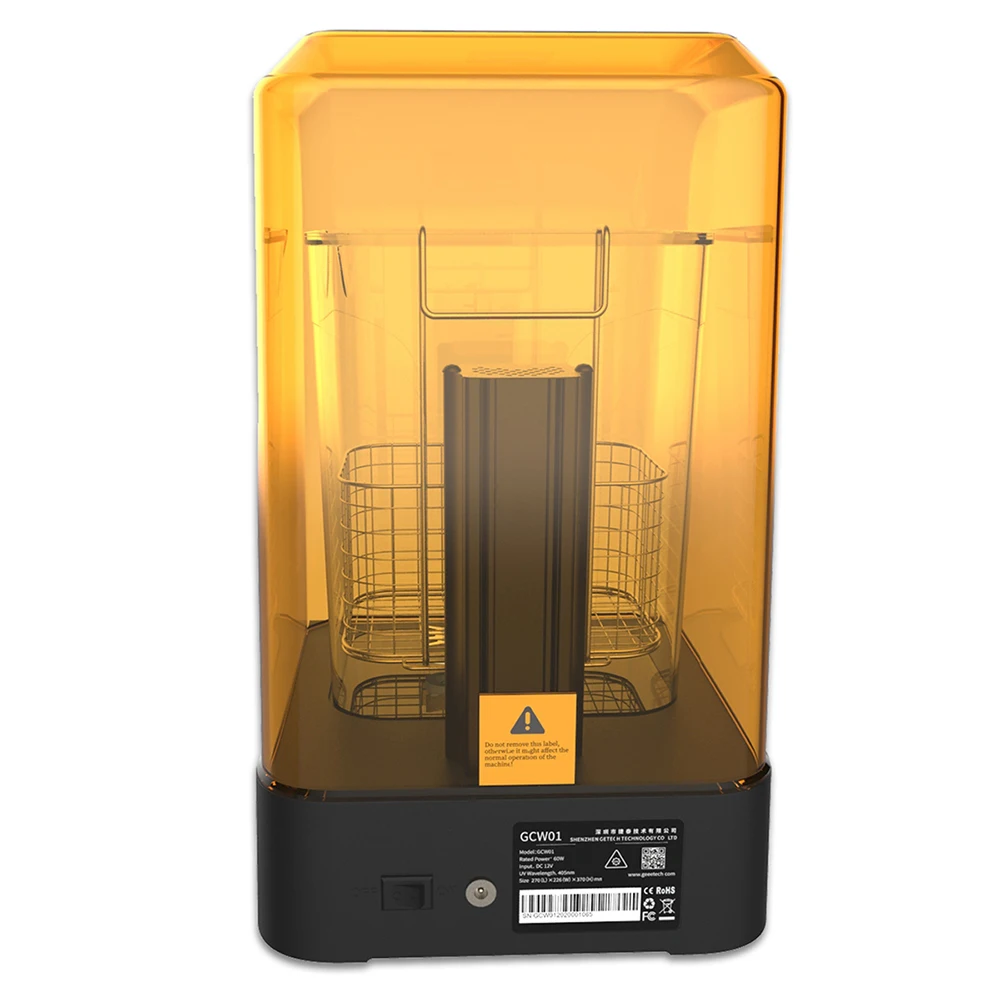

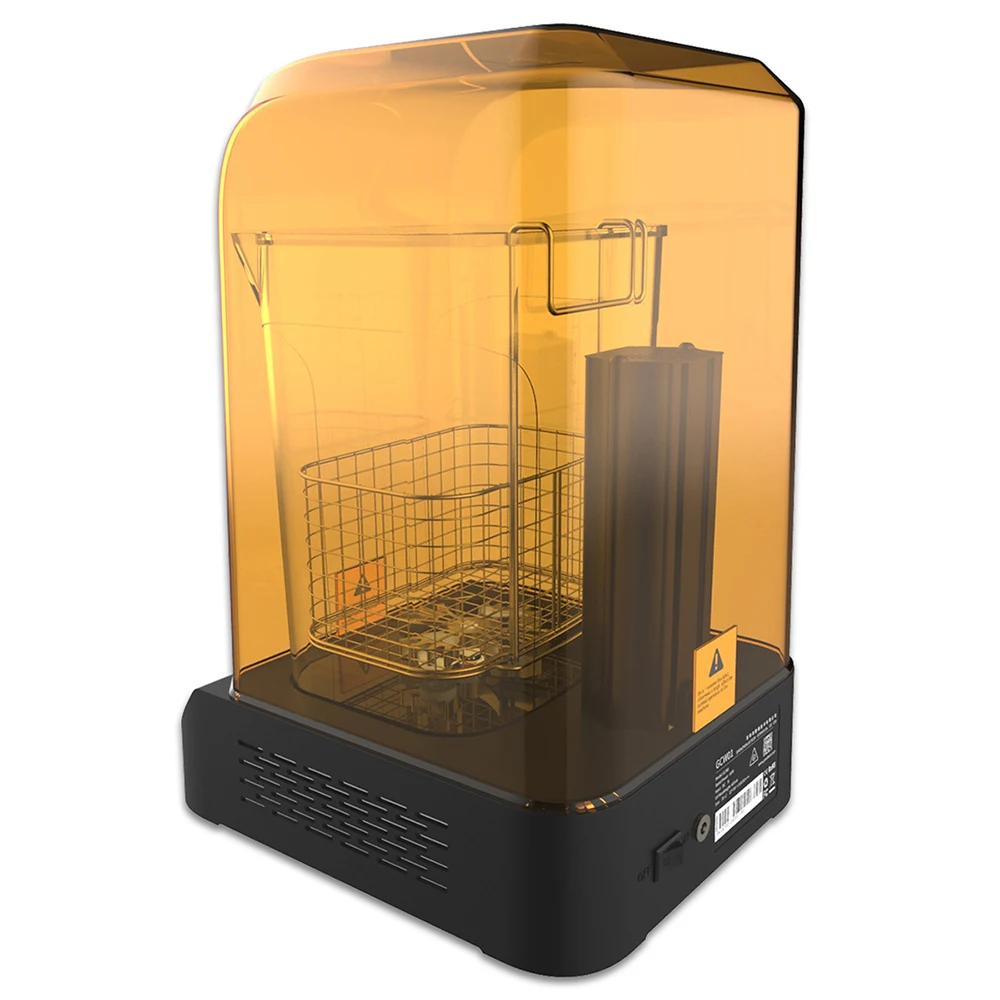

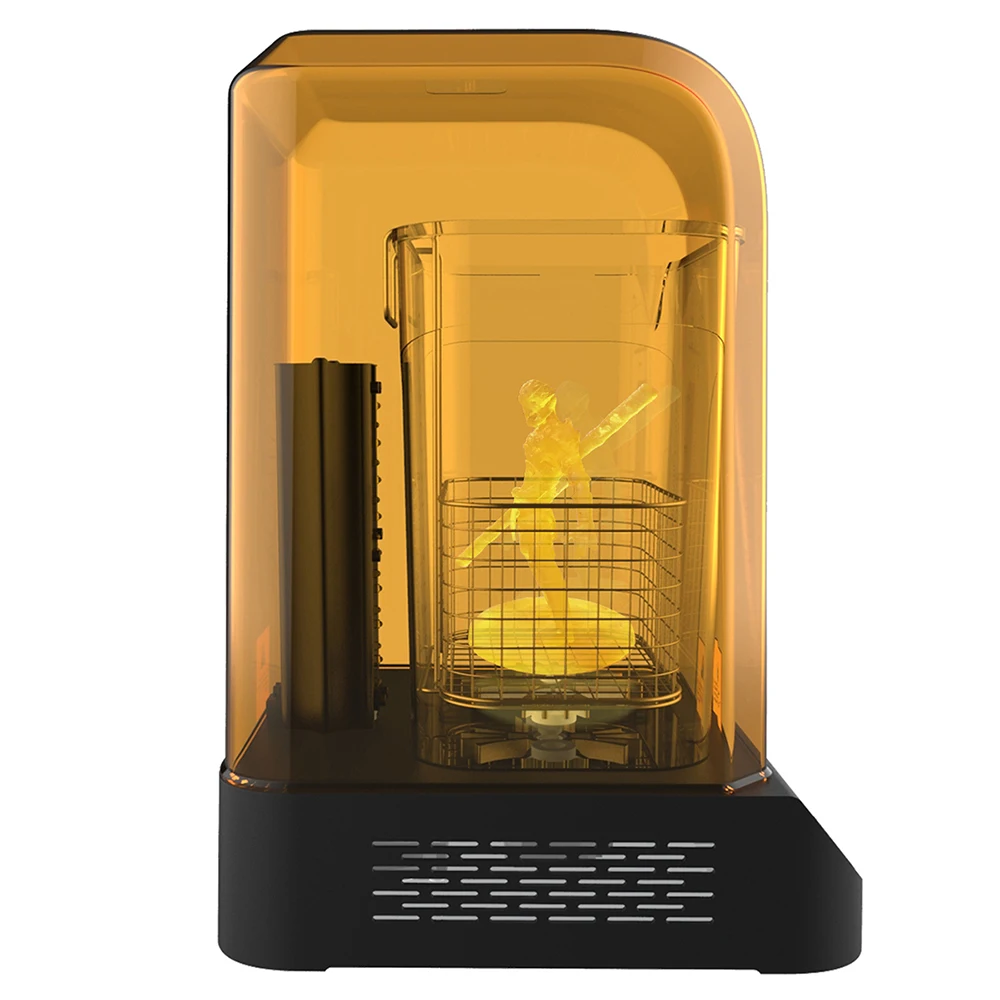

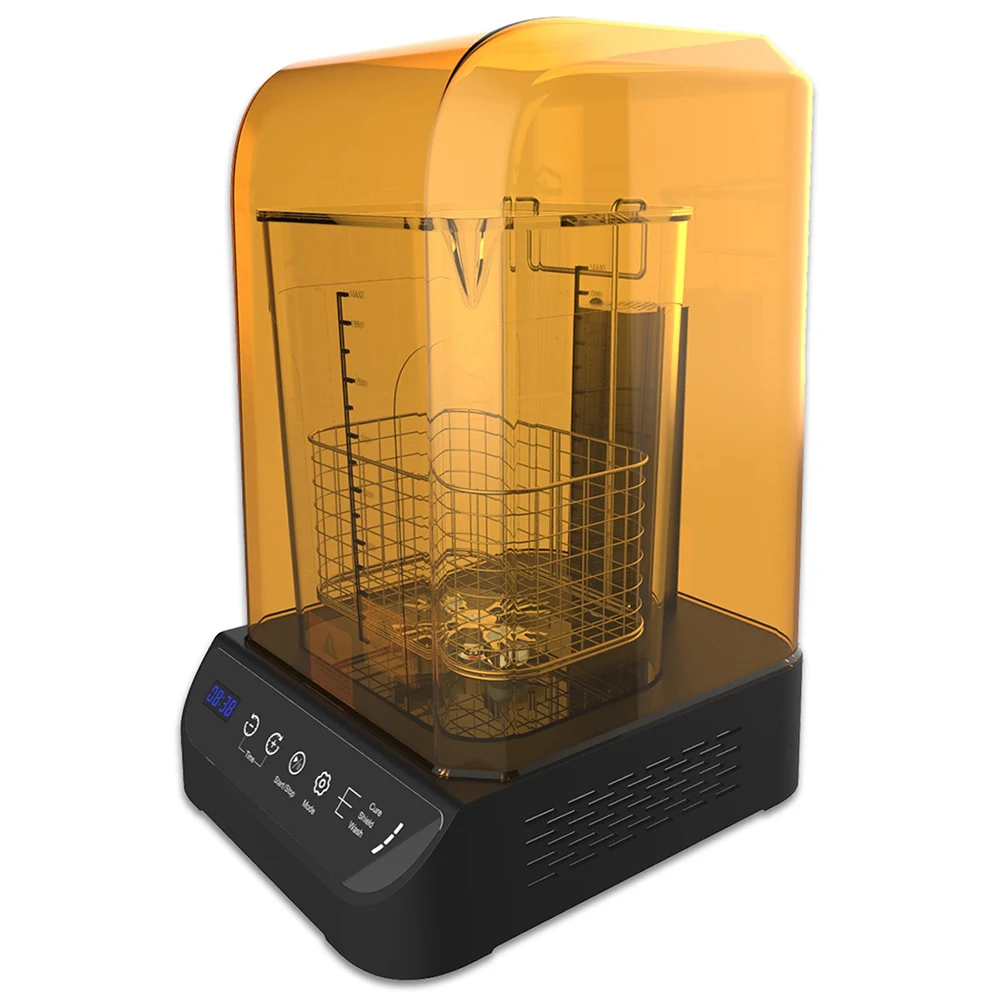

GCW01 is a machine for cleaning and curing printed models. It uses high-power UV light source and touch operation. After processing the light-cured models, the models can achieve the best appearance and performance.

Feature：

l【Dual Function】One machine with dual functions: washing orcuring. This 2-in-1 machine offers you a better experience and more convenient operation.

l【High Curing Speed】16 405nm UV lamp beads, total power 48w.Equipped with high power UV lamps, the machine allows you to cure the models comprehensively.

l【Anti-UV Light Hood】The transparent cover of this washing & curing machine can block up to 99.99%of ultraviolet rays. Fully transparent design, you can see the whole working process of the machine more clearly.

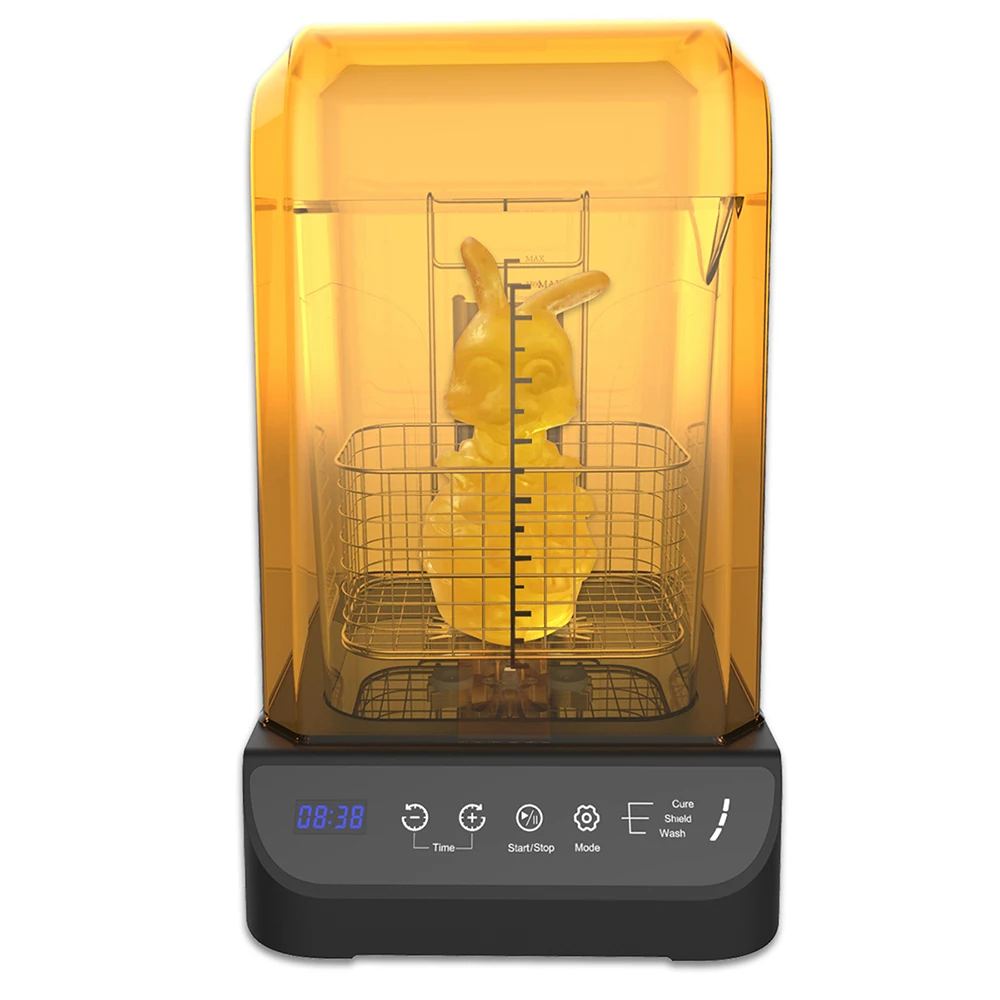

l【Ergonomic Design】The touch panel adopts an inclined surface design, which provides a better control experience compared to the 90° vertical control panel of other products;

l【Intelligent Detection】Once the hood is removed, the UV lamp will be automatically turned off immediately, once the hood is reset, and the UV lamp resumes working.

Specification:

Power supply: 12V

Power adapter: Input 100~240V, 50~60Hz, Output 12V/6A

UV lamp: 16 pcs

Maximum power of UV lamp: 48W

UV lamp wavelength: 405nm

Washing/Curing time: 0~60min

Maximum curing size: 140(Φ)*166mm

Maximum washing size: 150mm*95mm*166mm

Product size: 225(W)*270(L)*370(H)mm

Packing size: 299(W)*344(L)*474(H)mm

Weight: ~3.3kg

Packing list:

1. Geeetech GCW01 Machine *1

2. After-sales Service Card *1

3. User Manual *1

4. Power Adapter *1

5. Anti-UV Light Hood *1

6. Washing Bucket *1

7. Washing Basket *1

8. Curing Platform *1
