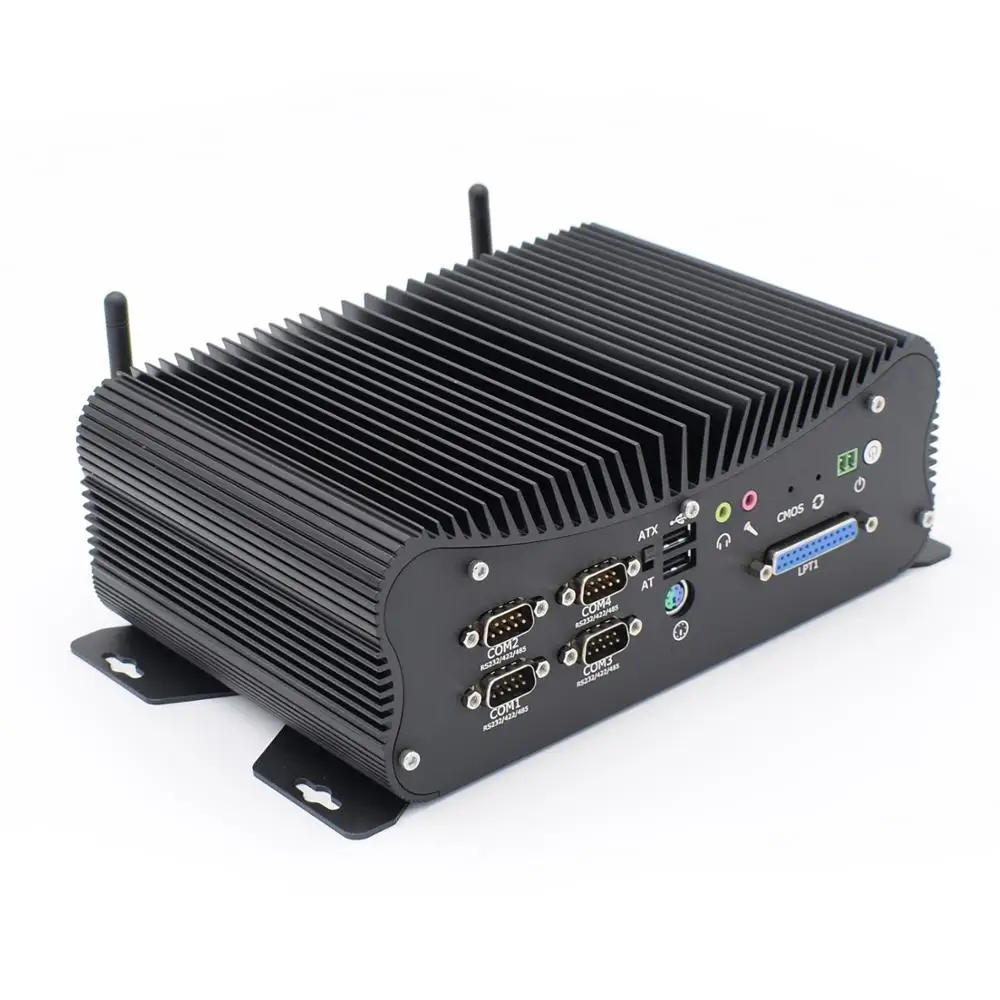

Free shipping computer 6*DB9 COM RS485 RS422 14*GPIO 2*GbE inte i211 i210 m.2 NVME 10th Quad Core i7 10510U Fanless mini pc HTPC
R20,496 – R37,576
Kindly Remind: 1, This computer works with lower voltage at 1.35V instead of normal 1.5V RAM. 2, its warranty is 3 years, for details, please read “Questions and Answers” below. 3, The RAM and SSD/HDD are from famous brand, the RAM is normally Samsung, Elpida, Hynix; The SSD is normally from Toshiba, Samsung, ADATA, […]
Description
Kindly Remind:
1, This computer works with lower voltage at 1.35V instead of normal 1.5V RAM.
2, its warranty is 3 years, for details, please read “Questions and Answers” below.
3, The RAM and SSD/HDD are from famous brand, the RAM is normally Samsung, Elpida, Hynix; The SSD is normally from Toshiba, Samsung, ADATA, Intel, Lite-on etc. they will be shipped out at random in stock.
4, The default Operating System Windows 10 Pro, it is just for testing, copied and activated but not licensed, please install the licensed one if you like it.
5, According to Aliexpress policy, it is buyer’s duty to pay import tax; it is normally declared at USD105-120 to save buyer’s tax, but not sure if it is free tax.
Windows 10 Desktop:
Quality Approval:
Specifications:
|
Processors |
Intel Core i7-10510U, 1.80 GHz, Max Turbo 4.90 GHz
Intel Core i5-10210U, 1.60 GHz, Max Turbo 4.20 GHz
Intel Core i5-7267U, 3.10 GHz, Max Turbo 3.50 GHz
Intel Core i5-8250U, 1.60 GHz, Max Turbo 3.40 GHz
Intel Core i5-8269U, 2.60 GHz, Max Turbo 4.20 GHz
Intel Core i5-8265U, 1.60 GHz, Max Turbo 3.90 GHz
|
|
|
Memory |
DDR4 SODIMM x2，max to 32GB ( 16GB x2 ),2*260-pim SO-DIMM |
|
|
Ethernet |
2 x GbE RJ45 Intel i211/i210AT |
|
|
I/O |
4 x USB3.0，2 x USB2.0 |
|
|
6 x DB9 RS232 COM（4 of them support adjust to RS485/RS422） |
||
|
1 x LPT |
||
|
1 x HDMI, 1 x VGA |
||
|
1 x PS/2 ( support keybaord and mouse ) |
||
|
14 x GPIO（7 input，7 output） |
||
|
1 x Power Button, 1x2pin power switch, 1 x Reset Button，1 x Clear CMOS Button |
||
|
1 x 3pin phoenix power supply connector, support voltage DC 9V to 36V |
||
|
1 x MIC 3.5mm,1 x MIC 3.5mm |
||
|
1 x ATX/AT power switch |
||
|
2 x WiFi antennas connectors, applied for WiFi/3G/4G model |
||
|
Storage |
1x mSATA SSD ( default install this type hard drive if you buy with SSD ) |
|
|
1x M.2 NVME 2280 ( PCIe ) |
||
|
1x 2.5 inch HDD/SSD |
||
|
Expansibility |
Mini-PCIe x 1 half height size，support WiFi bluetooth |
|
|
Mini-PCIe x 1 full height size, support 3G/4G module，WiFi bluetooth module |
||
|
IO x 1, support LPC，USB，PCIE, SIM card slot |
||
|
OS Support |
Windows 7/8/10，WES 7/10，LINUX |
|
|
Other function |
Watch dog, one key restore, non-disk booting, wake up on LAN, automatically power on after power restore |
|
|
Power Adapter |
AC100-240V IN, DC12V-5A Output |
|
|
Construction |
Fanless passive cooling |
|
|
Material |
Aluminum alloy |
|
|
Dimension |
249 x 150 x 86 mm |
|
|
Netweight |
2.2 Kg |
|
|
Store Temp. |
-30℃ to +70℃ |
|
|
Working Temp. |
-20℃ to +60℃ |
|
|
RH |
10%~90% @30℃，Non-condensing |
|
|
Package List |

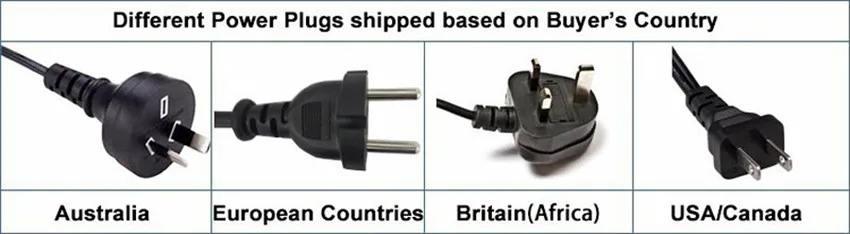

1x Mini PC 1x AC Adapter (AC100-240V IN, DC12V-5A Out ) 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cable 1x User manual |
NOTE: Buyer who need add 3G or 4G module to your mini PC should be charged extra 49USD ( NOT include SIM card )
Product Advantages:
Small Size: All Kingdel Mini PC is smaller than A4 paper, some of them only 3.5 inch size, just like the HDD size used in traditional fat computers. Most of those small size mini pc can be mounted to the backside of monitor, and takes almost zero space on your desk, make your desk more clear and tidy.
Durability: all of the fanless mini pcs are highly intergrated, fanless design makes it silent in working and no need extra maintenance like normal fat comptuters. And most of their cases are made by aluminium alloy metal materia.
Low Power: all of the mini pcs work 12V power supply, power consumption is from 15W to 30W, compare to 150W traditional pc’s consumption, it saves more than 80% energy.
Universal Performance: The mini pcs are compatiable to almost all popular operating systems, such as Windows, Linux. You can not only use it as personal computer at home, HTPC in living room, but also use it in office, training center, advertisement, factory, internet cafe and anywhere that needs computers to work.
\Additional information
| color | 16G RAM 1TB SSD, 32G RAM 256G SSD, 32G RAM 512G SSD, 64G 1TBSSD 2TB HDD, 64G 512G 2TB HDD, 64G RAM 1TB SSD, 8G RAM 256G SSD, NO RAM No Storage |
|---|---|
| Processor Main Frequency | 1.8GHz |
| Use | Commercial |
| Memory Capacity | ≥ 4GB |
| Hard Drive Capacity | ≤ 40GB |
| Model Number | K9 |
| Processor Brand | Intel |
| Processor Model | i7 10510U |
| Type | MINI PC |
| Graphics Card Type | Integrated Card |
| Brand Name | kingdel |
| Origin | Mainland China |
| Certification | none |
| Feature | Fanless+10th Gen. i7 CPU+HDMI+DP+4*USB2.0 |
| Graphics | Intel UHD Graphics |
| USB Port | 4*USB 3.0+2*USB 2.0 |
| LAN | 10M/100M/1000M LAN |
| Case Material | Brushed Aluminum Alloy Case |
| Resolution(HDMI) | 4096×2304@24Hz |
| WIFI | For free |
| Operate System | Default:Windows 10, Optional:Linux |
| RAM+SSD | Customised |
| Products Status | Stock |
| Bundle | Core i7 10510U DDR4 |
