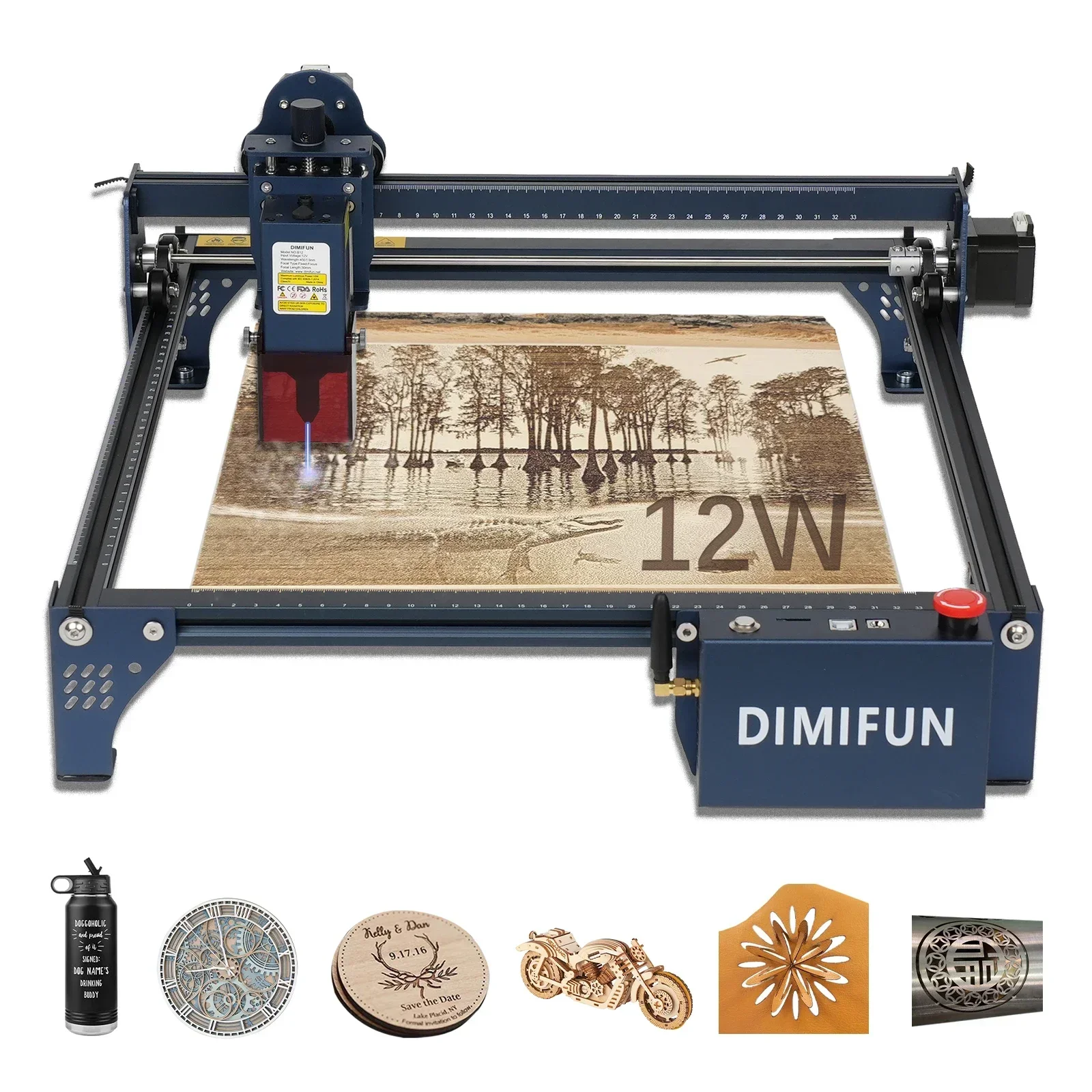

DIMIFUN DM6 B12 Laser Engraving Machine 12W Offline Control with Blue Light for Precise Engraving laser cutting machine

Feature

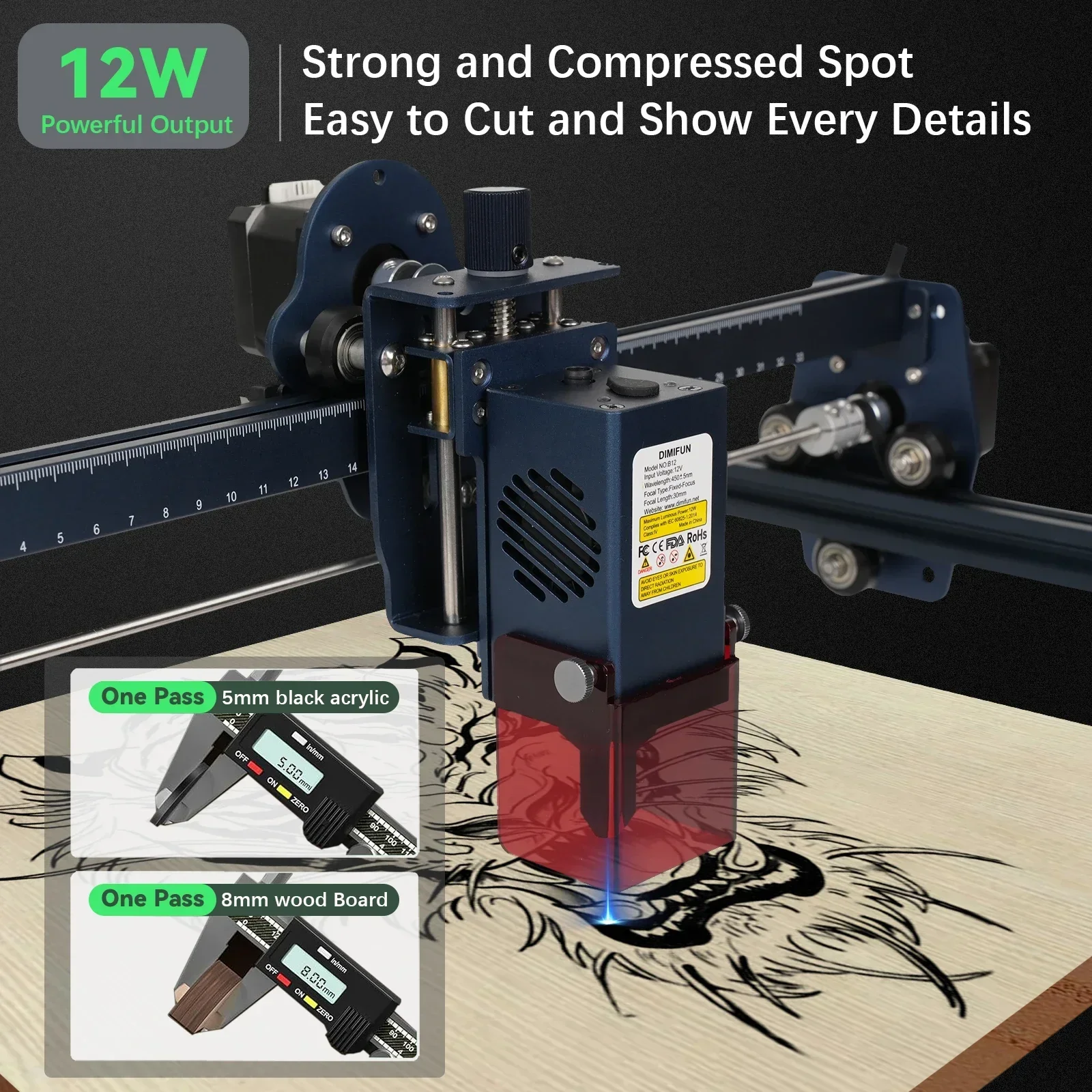

Advanced laser technology: B12 adopts 2-beam laser diode engraving and cutting module, with fixed focus and dual fan design. Due to the built-in DIMIFUN unique fiber compression technology, it has very strong energy density (0.06×0.06mm, 12W+ pulse and 11W continuous light power), and has very special and top-level artistic expression in the engraving of materials such as stainless steel grayscale engraving, stone carving, glass engraving, hardwood relief, canvas art, etc. , with super strong cutting penetration and precision, it can cut pine wood with a thickness of up to 20 mm, acrylic with a thickness of 15 mm, etc.

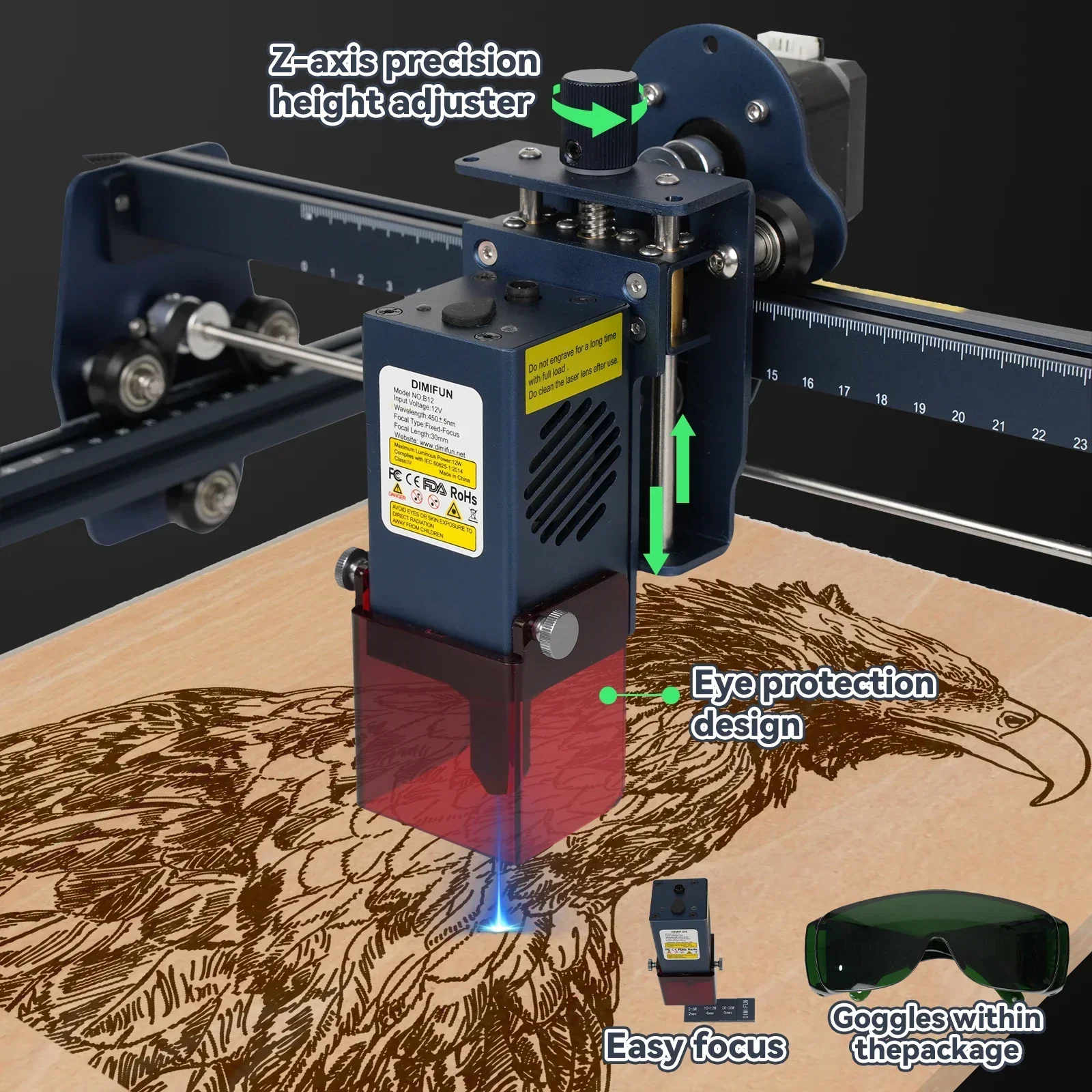

Fast focus design: Combine fixed focus lens and Z-axis knob to adjust the height. Just turn the knob to focus. Equipped with fixed focus block, it is very convenient to use.

32-bit motherboard: The motherboard adopts 32-bit dual-core MCU, which has faster processing speed and can reach an engraving speed of 12000mm/min. The laser can be engraved online and TF card offline. Working area: 330x330mm.

Easy assembly structure: Aluminum profile structure design, dual-axis motor makes the machine work more stable and improves engraving accuracy. 60% pre-assembled, 15-20 minutes to complete assembly.

Square measuring ruler: X-axis and Y-axis contain precise scale lines, which are convenient for you to quickly measure the size of the engraved object

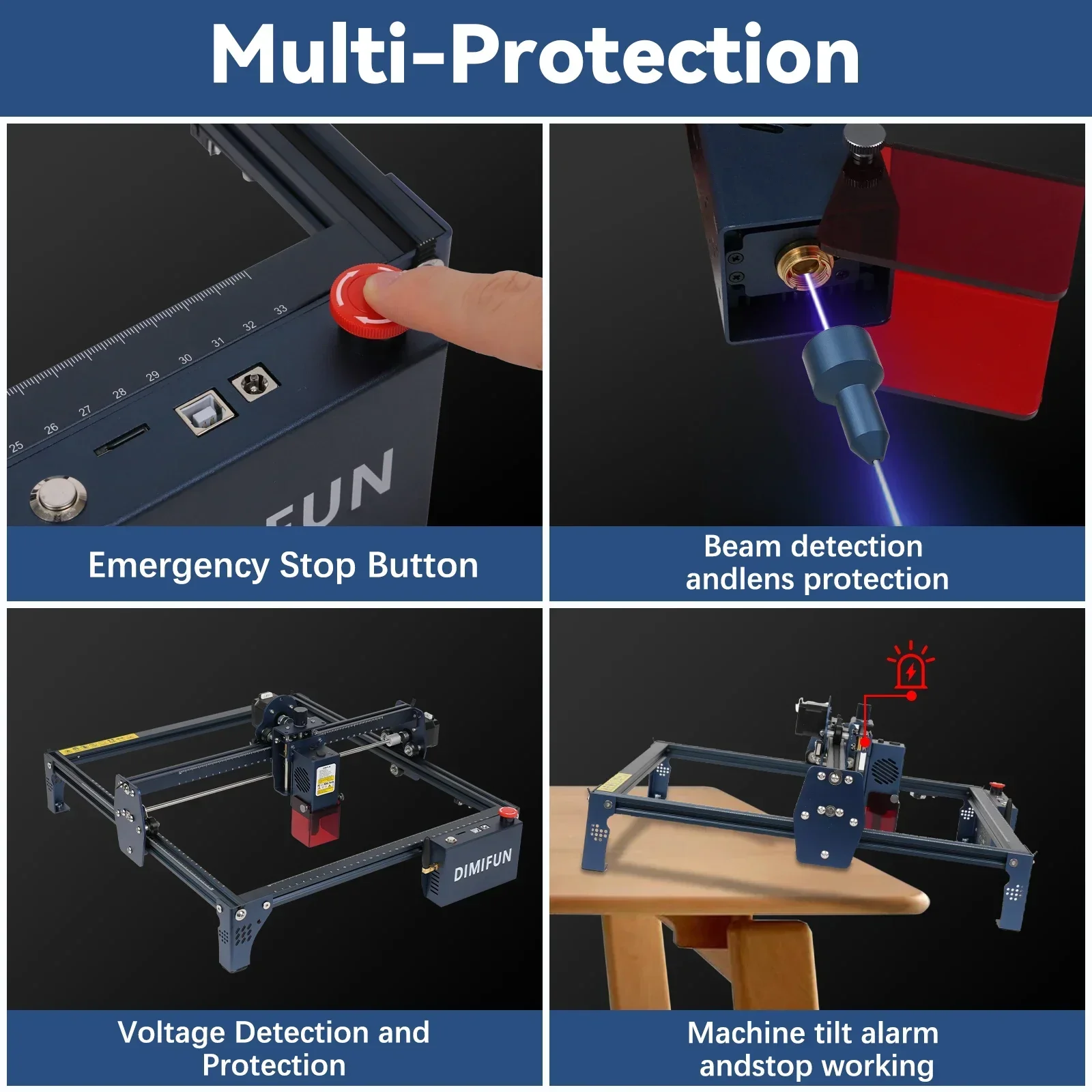

Safety design: The laser filter can filter 98% of the ultraviolet rays entering the eyes. The mainboard has an emergency switch and a gyroscope sensor. When you press the emergency switch or the machine tilts more than 15 degrees, an alarm will be triggered and the machine will stop running.

Software compatibility: DM6 laser engraving machine is compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile application: MKSLaser (for Android and IOS systems)

Engraving and cutting capabilities: B12 laser can engrave wood, plastic, paper, leather, bamboo, sponge paper, alumina, stainless steel, chevron board, acrylic, etc.

Air assist: The B12 laser module has an air assist design and a built-in metal air nozzle. If you need to use air assist, you need to purchase an air pump separately. The recommended flow rate is greater than 30L/min.

Machine parameters:

Brand: DIMIFUN

Model: DM6 B12

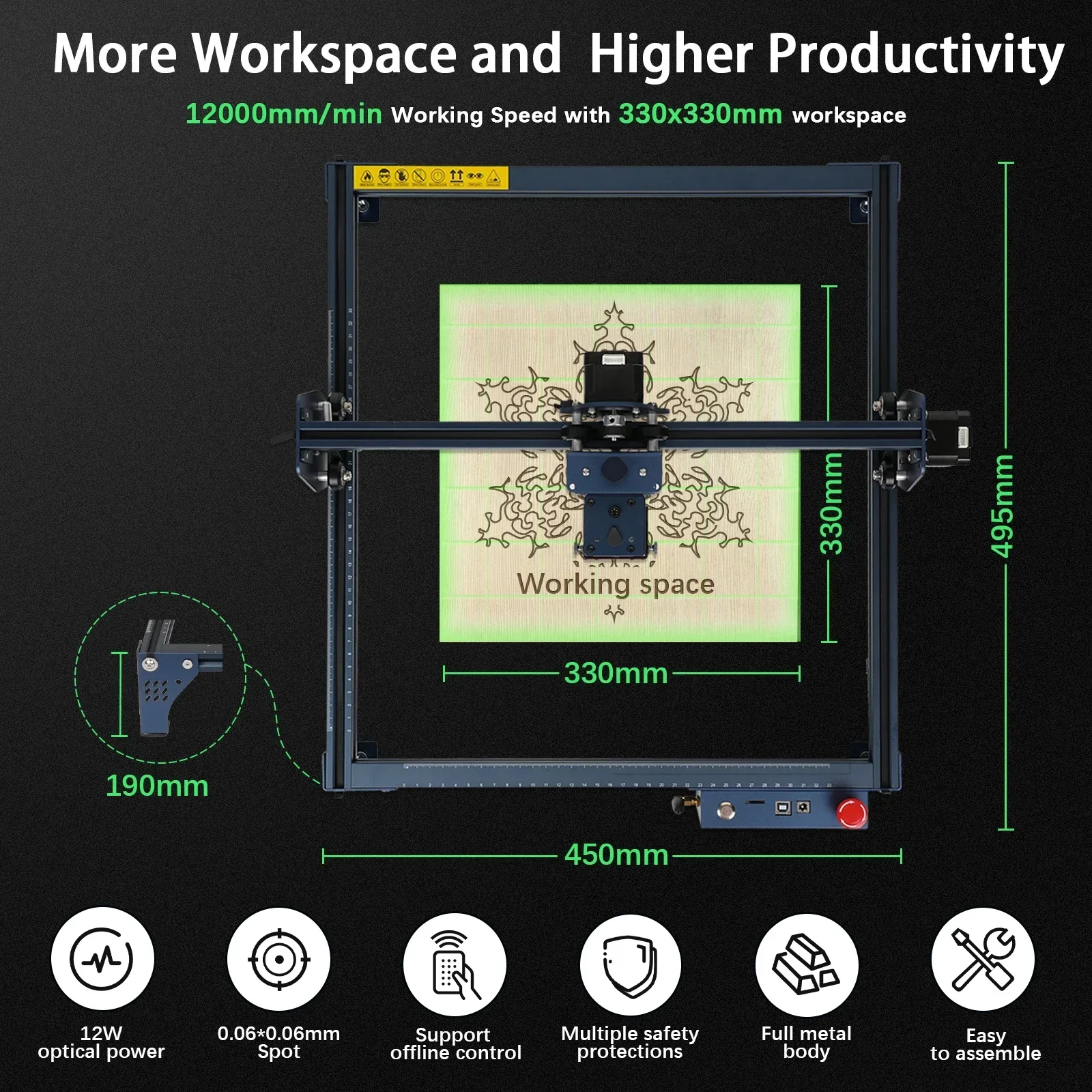

Working area: 330*330mm

Product size: 490*495mm

Spot size: 0.06*0.06mm

Laser wavelength: 445±5nm

Laser power: 12W

Engraving accuracy: 0.1mm

Engraving speed: 12000mm/min

Machine material: aluminum profile

Power supply: 12V 5A DC

Control board: DIMIFUN motherboard (32-bit)

Software support system: MAC, Windows, Lunix

Engraving method: USB/APP/Online/TF

Product weight: 2.97kg

Packaging weight: 4.48kg

Air interface: 8mm PVC air pipe

Protective window lens: Yes (resistant to 1000℃)

Software recognition file format: SVG, NC, BMP, JPG, PNG, Gcode, etc.

Supported software: Free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile application: MKSLaser (for Android and IOS System)

Software supports languages: Chinese, English, Italian, French, German, Japanese, Korean, etc.

Engraving materials: wood, plastic, paper, leather, sponge paper, aluminum oxide, stainless steel, etc.

Engraving modes: graphic engraving, file engraving, scan engraving, contour engraving, pixel engraving

Unlimited possibilities for DIY creation

Note: Transparent materials cannot be cut or engraved directly, and the surface needs to be covered.
