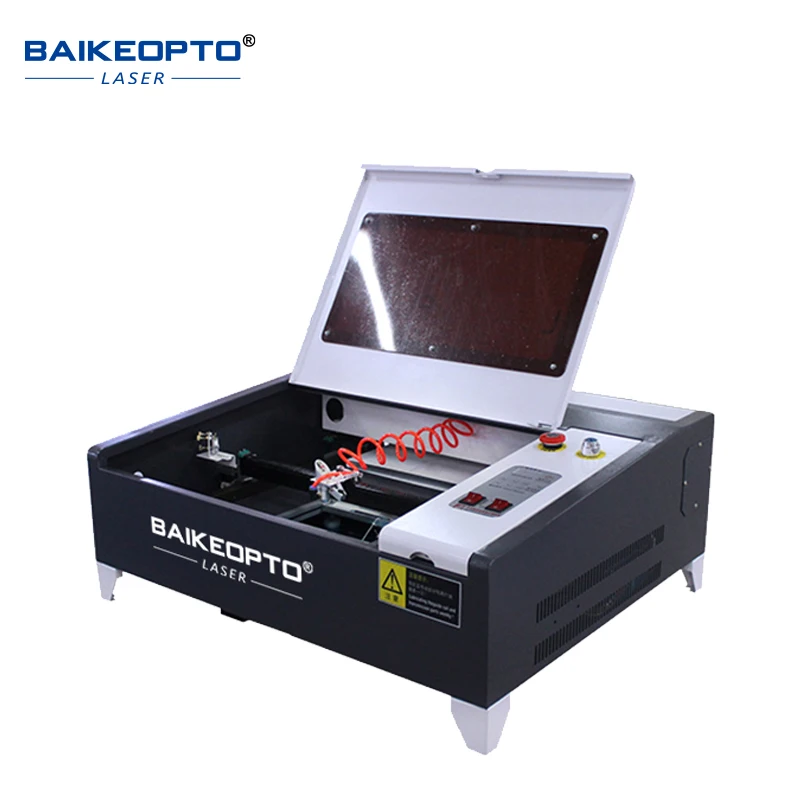

BK-K4040A 40W 4040 Desktop Small CO2 Laser Engraver Cutting Machines Price
R15,635 – R16,226
Product Description Product Paramenters Product BK-K4040A Laser Type Hermetic CO2 glass tube Laser Power 40W/50W/60W Working Area 400mm*400mm(X*Y) Worktable Manual up&down table with small fixture PositionaI Accuracy ±0.01mm Minimum Formed text Chinese characters 2*2mm, English letters1*1mm Driving Sytstem Stepper motor Control Board Ruida6445 Software LaserDRW Compatible Computer System WIN XP, 7,8,10 File Format Support […]
Description
Product Description
Product Paramenters
|
Product
|
BK-K4040A
|
|
Laser Type
|
Hermetic CO2 glass tube
|
|
Laser Power
|
40W/50W/60W
|
|
Working Area
|
400mm*400mm(X*Y)
|
|
Worktable
|
Manual up&down table with small fixture
|
|
PositionaI Accuracy
|
±0.01mm
|
|
Minimum Formed text
|
Chinese characters 2*2mm, English letters1*1mm
|
|
Driving Sytstem
|
Stepper motor
|
|
Control Board
|
Ruida6445
|
|
Software
|
LaserDRW
|
|
Compatible Computer System
|
WIN XP, 7,8,10
|
|
File Format Support
|
JPG, BMP, DXF, PLT, AI, DWG, etc
|
|
Compatible Software
|
CorelDRW
|
|
Computer Interface
|
USB interface
|
|
Engraving Speed
|
0~500mm/s
|
|
Cooling System
|
Water Cooling
|
|
Working Temperature
|
5C°—38C°
|
|
Working Voltage
|
110V or 220V, 50HZ or 60HZ
|
|
Configuration
|
Red light positioning, Blowing flame retardant
|
|
Optional
|
Water protection, Chiller, Off-line function
|
|
Packing Model
|
Plywood
|

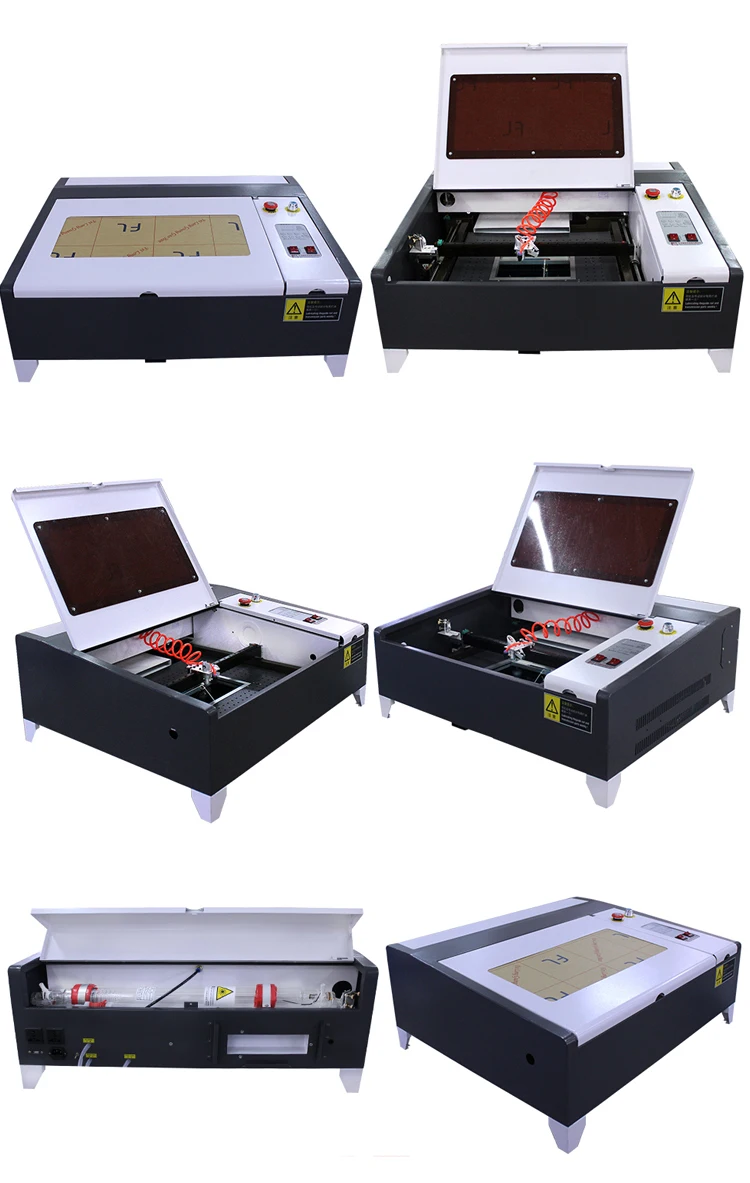

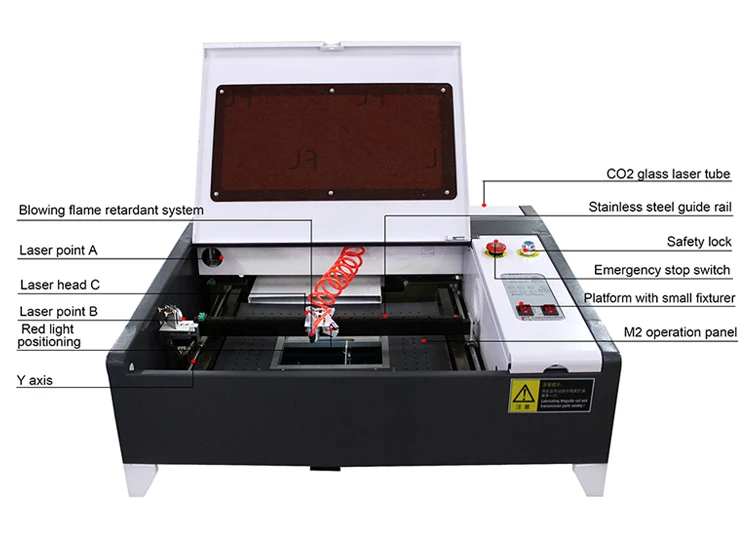

Detail Images

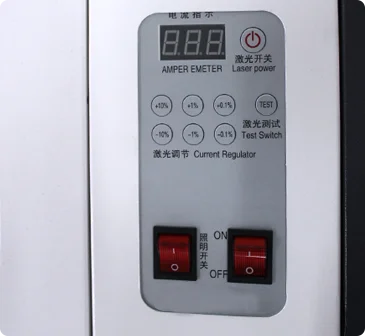

Operating Panel
Push-button control makes the operation of the controller more convenient, which makes the current adjustment more precise. The operation is simple and easy and the desigh is more user-friendly.

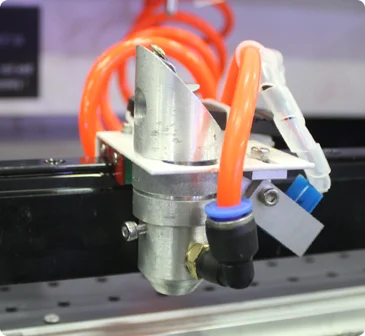

Laser Head
High precision laser head has long service life. It is equipped with red light indication and easy to position. It is easy to cause fire break out while processing, so it is added a flame-retardant blowing device to stop burning.

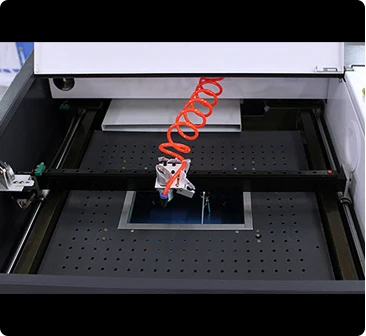

Precision Plotter
Plotter adopts linear guide rail, high precision Fast speed and wear resistance.

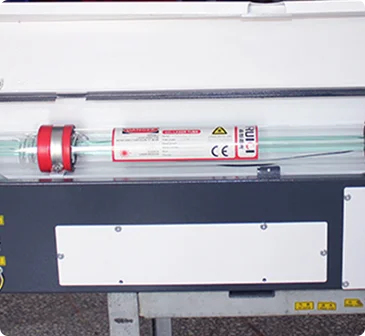

The Laser Tube
High quality laser tube, high quality output power, small spot, strong penetration, high power, more stable output, good heat resistance, high temperature resistance.

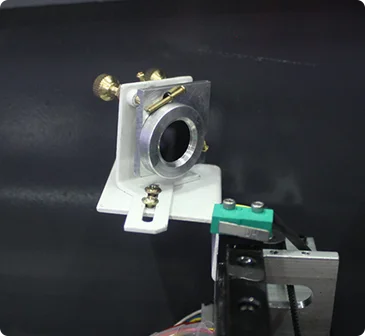

High Quality Mirror Frame
Being made specially for machine, precise and durable thickened galvanized aluminum plate, antioxidant, durable and easy to adjust, precision hardware, long service life.
Â
Application
Additional information
| color | BK-K4040A |
|---|---|
| Power | 40W, 50W |
