Description

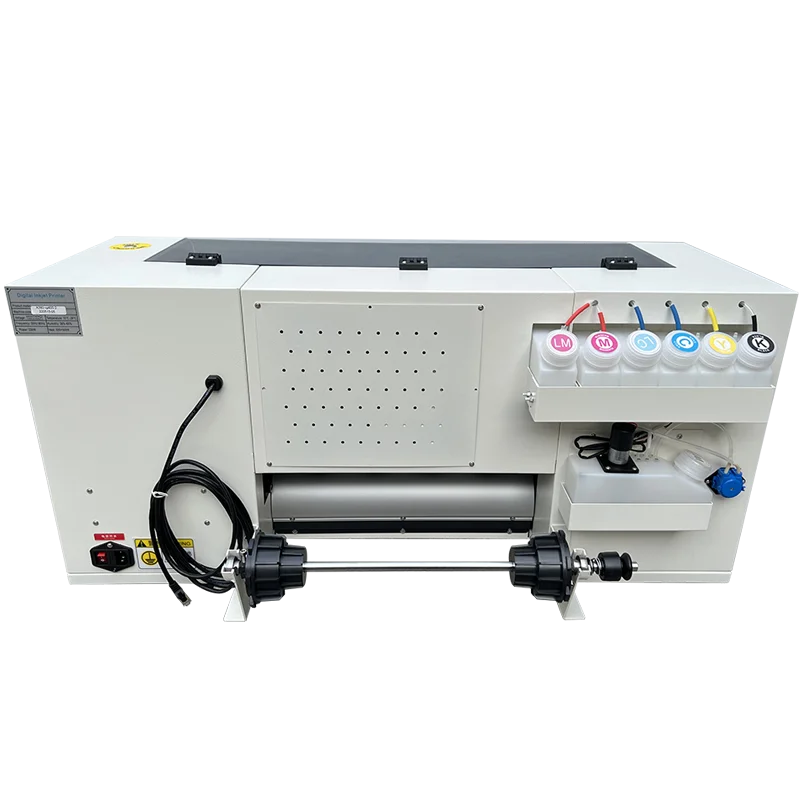

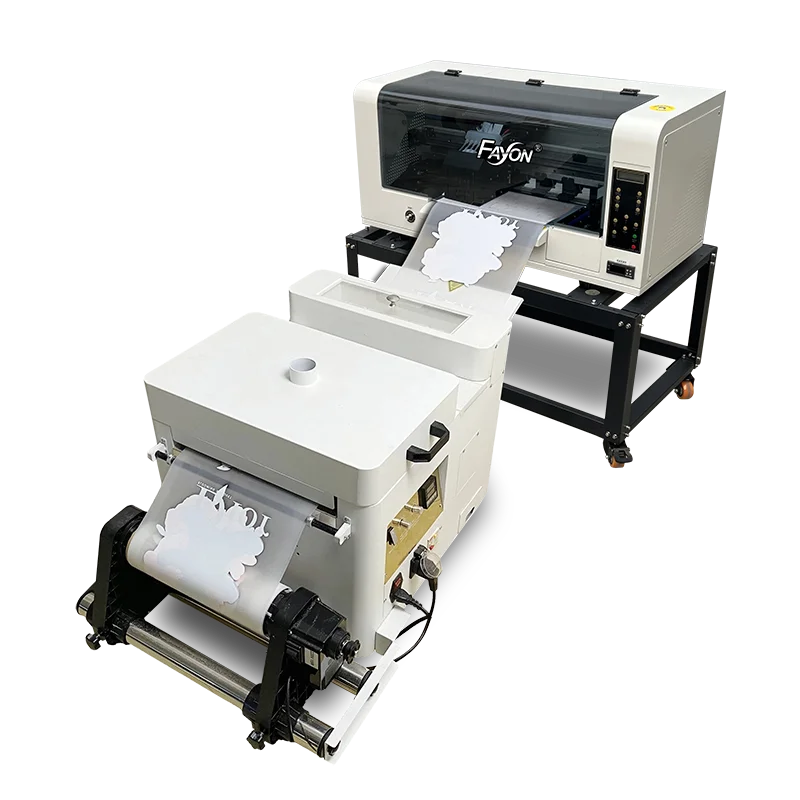

350mm DTF Printer A2 A3 DTF Printing Machine WIth i3200/TX600/Xp600



Product attributes

Model No.：FY-350

Print width：≤350mm

Printer head type：TX600/XP600/i3200

Number of printer head：2-4

Print material：DTF PET film



Printing speed：

Dual TX600：6pass 2㎡/h；8pass 1㎡/h

Four TX600：6pass 5㎡/h；8pass 3㎡/h

Dual XP600：6pass 5㎡/h；8pass 3㎡/h

Dual i3200：6pass 5㎡/h；8pass 3㎡/h



Printing accuracy：720dpi/1080dpi/1440dpi

Printer head cleaning：automatic

Platform suction adjustment：yes

Print interface：USB3.0/Gigabit network port

Work environment：temperature15-30℃

Relative humidity：40-60%

Software：Maintop/Photo Print

Operation system：XP/Win7/Win10

Reeling function：automatic sensing system

Rated power：250士5%W



Machine size/weight：

Printer：950*400*950mm（47kg）

Powder shaking machine：1000*500*580mm（33.5kg）



Packing size/weight：

Printer：1010*550*590mm（55kg）

Powder shaking machine：680*570*720mm（41.5kg）



Advantages



1.Hoson board.high-end board ensure stable performance.





2.Servo motor.quality servo motor offers high printing resolution.





3.Ink tank system.CMYK+W ink system,constant ink supply.





4.White ink agitator.automatic white ink mixing to prevent precipitation.





5.Imported guide rail.imported Hiwin silent guide rail,high precision and long lifetime.





6.Aluminum alloy beam.6mm aluminum alloy printer structure,highly improved lifetime.





7.Button and screen.LED screen,Chinese-English button,easy operation.





8.Tank Chain.protecting data cable effectively,improving lifespan.





9.Aluminum cap station.lifting aluminum cap station,auto print head clean.





10.Paper pincher.longer paper pincher to hold more papers,protect print head.
