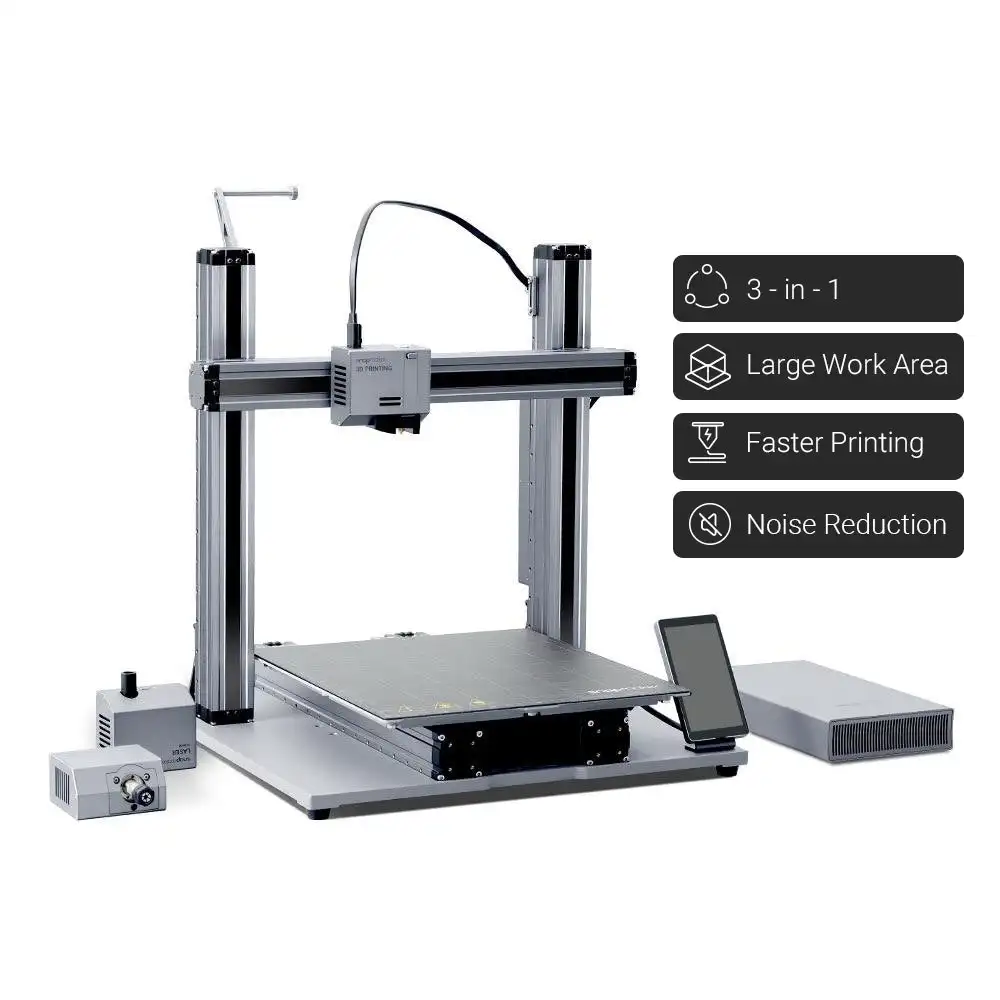

2022 Snapmaker 2.0 Modular 3-in-1 3D Printer A350T A250T

Snapmaker 2.0 Modular 3-in-1 3D Printer A350T A250T

A350T/A250T has several upgrades based on Snapmaker A350 and A250, offering a faster and quieter printing experience. The product includes everything you need to start your maker journey:

• Newly designed Linear Modules
• Newly designed 3D Printing Module
• Newly designed Power Module with intelligent fan speed adjustment
• 1600mW Laser Cutting Module with built-in camera
• CNC Carving Module with ER11 Collet
• Controller powered by Cortex-M4 Processor
• 5″ Smart Touchscreen (Android OS, Quad Core A7 CPU @ 1.1GHz)
• Magnetic Heated Bed with removable Print Sheet for 3D Printing
• Aluminum Grid Table for Laser Engraving and Cutting
• MDF Board & Clamp Sets for CNC Carving
• Free 3-in-1 Software: Snapmaker Luban
• Materials including 1kg spool of PLA filament, 2 pcs of laser material, and 1 pc of CNC material

[1] The test result of A350 is from the previous version that has not been firmware upgraded for motion control algorithm improvement.
[2] The test result was obtained in Snapmaker laboratory, which may vary according to the testing conditions and product iteration, and is for reference only.

Dozens of Materials

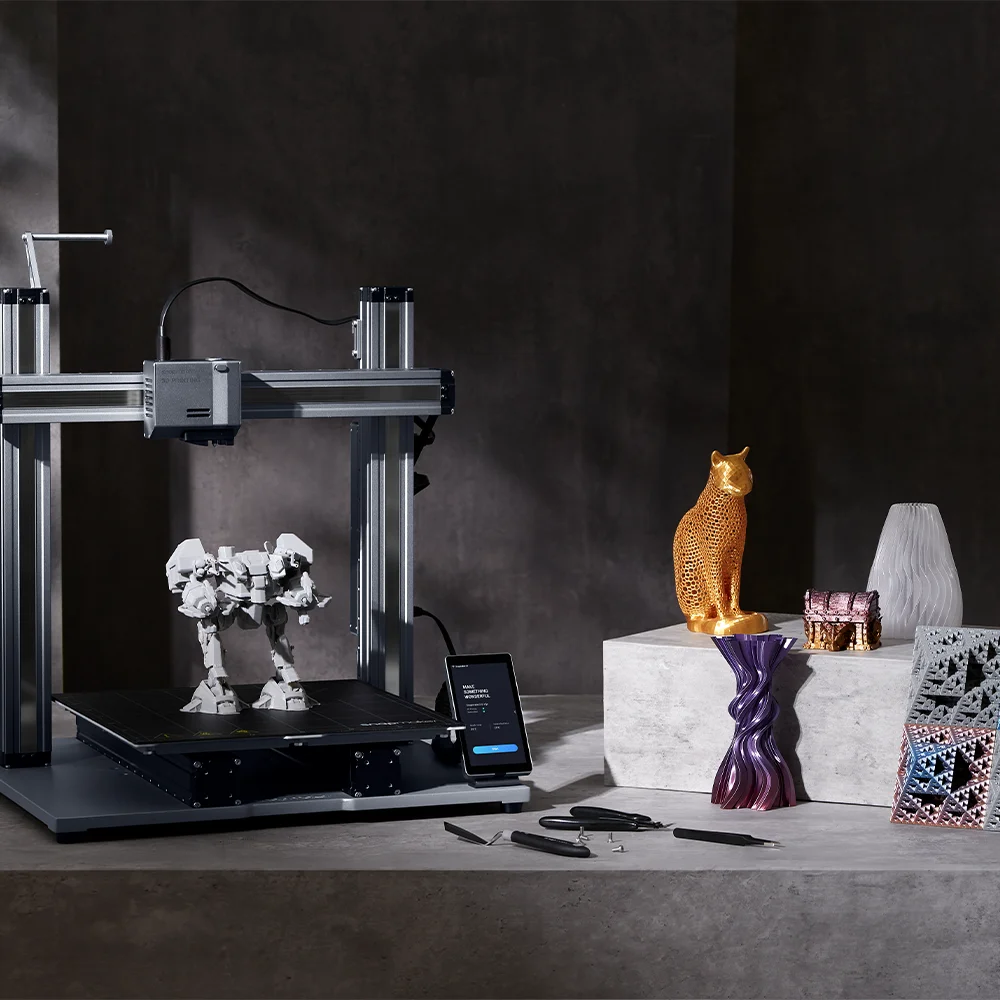

3D Printing

You can print almost anything for your creative projects: from common applications to objects with specific mechanical properties, such as toughness, durability, and flexibility. A350T/A250T can do it all.

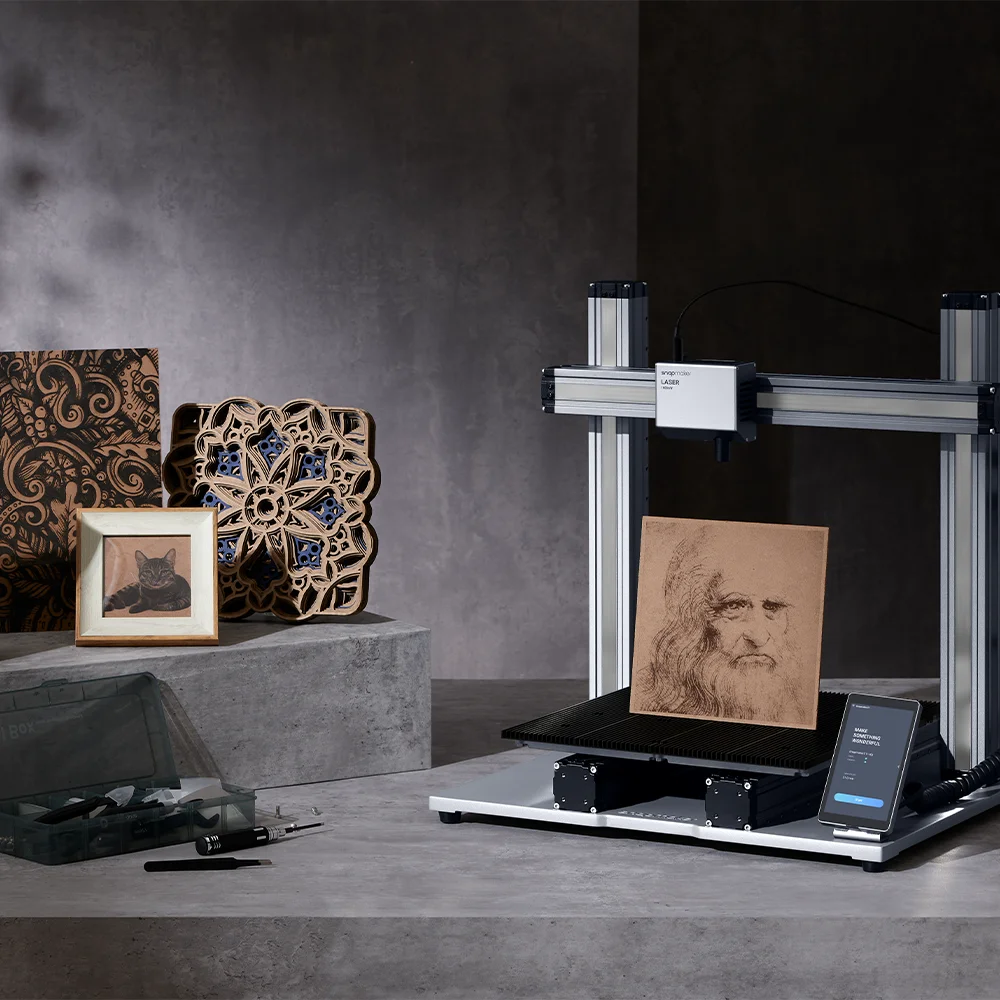

Laser Engraving and Cutting

A wide variety of materials you find in daily life are laser engravable or cuttable, including paper, plywood, leather, acrylic, cardboard, fabric, and even cookies and coconut shell!

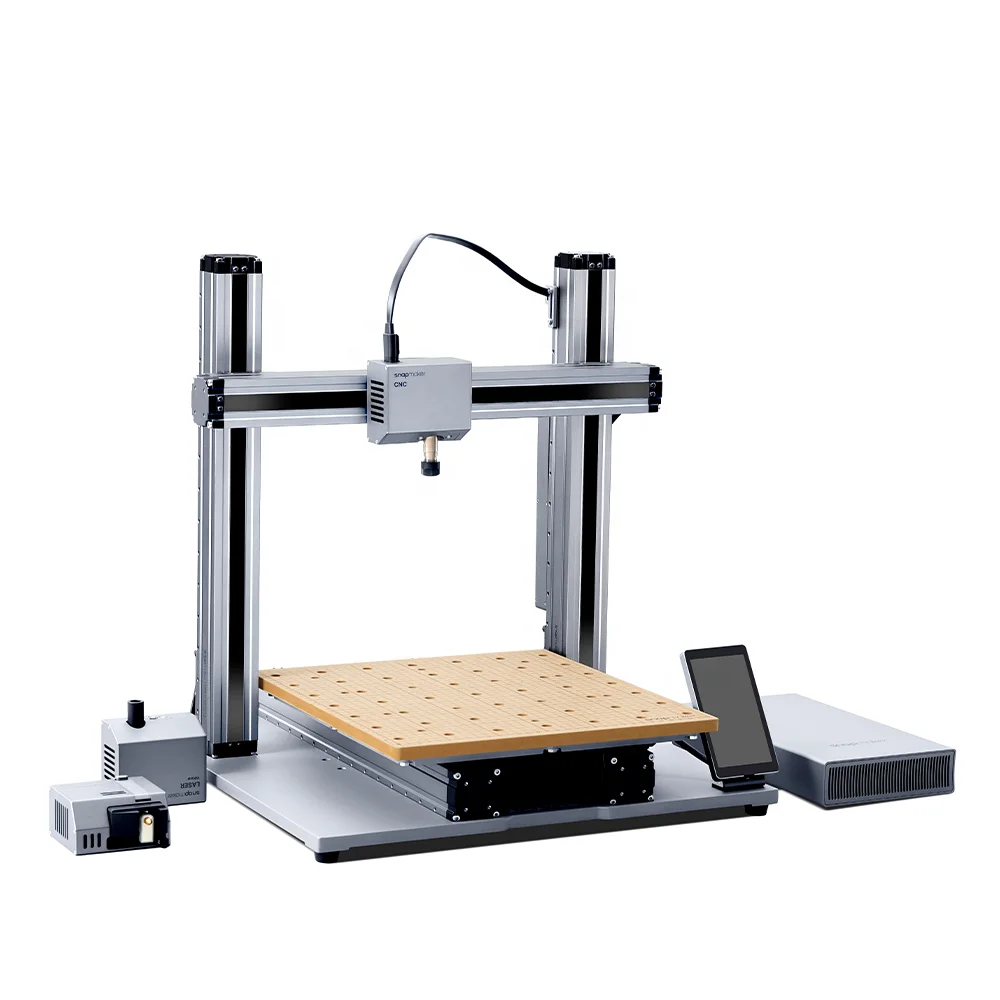

CNC Carving

CNC carving is ideal for precisely carving or cutting hard materials. With A350T/A250T, you are able to go beyond plastic or soft materials and choose among the following materials for your creative projects: hardwood, PCB, acrylic, POM, carbon fiber sheet, and many more.

Powerful Controller

One of the big reasons why A350T/A250T can support various modules and add-ons is that we have innovatively adopted the CAN (Controller Area Network) bus expansion. A special chip is built inside the controller to transmit all messages, which allows easy modification and inclusion of additional ports and controls in the future.

Modules & Addons

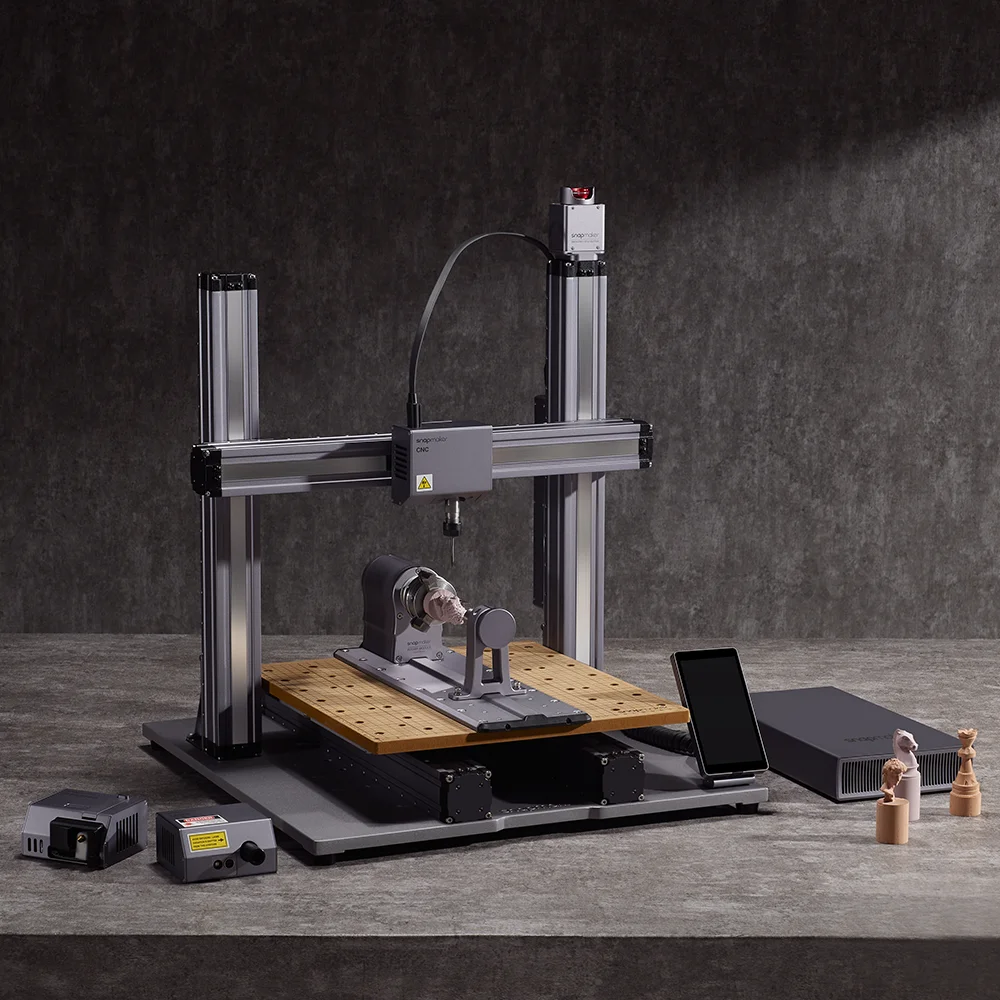

Thanks to its modularity, A350T/A250T can be personalized with a wide variety of modules and add-ons. For a greater level of applications, we have Enclosure, Rotary Module, Emergency Stop Button, CAN Hub, and Air Purifier available now. And there are more to come.

A350T
Dimensions (W × D × H):495 × 506 × 580 mm
3D Printing
Work Area (W × D × H):320 × 350 × 330 mm
Max Heated Bed Temperature:80℃
Laser Engraving and Cutting
Work Area (W × D):320 × 350 mm
CNC Carving
Work Area (W × D × H):320 × 350 × 275 mm

A250T
Dimensions (W × D × H):405 × 424 × 490 mm
3D Printing
Work Area (W × D × H):230 × 250 × 235 mm
Max Heated Bed Temperature:100℃
Laser Engraving and Cutting
Work Area (W × D):230 × 250 mm
CNC Carving
Work Area (W × D × H):230 × 250 × 180 mm

Tech Specs

Frame Material:Aluminum alloy

Data Transmission Methods:Wi-Fi, USB cable, USB flash drive

Touchscreen Specs:5 in., Android OS, Quad-core 1.1 GHz ARM Cortex-A7

Supported File Types:.stl, .obj, more formats to be added

Supported OS:Windows, macOS, Linux

Rated Power:320 W

3D Printing:

Layer Resolution:50–300 microns

Nozzle Diameter:0.4 mm

Max Nozzle Temperature:275°C

Supported Materials:PLA, ABS, PETG, TPU, wood filled PLA, and more being tested

Laser Engraving and Cutting:

Camera:Built-in camera

Laser Power:450 nm

Safety Class:Class 4

Supported Materials:Wood, leather, plastic, fabric, paper, non-transparent acrylic, and more being tested

CNC Carving:

Shank Diameter:0.5–6.35 mm

Spindle Speed:6,000–12,000 RPM

Supported Materials:Wood, acrylic, PCB, carbon fiber sheet, jade, and more being tested

Package Specs

Package Dimensions:
(W × D × H) 628 × 554× 312mm (A350T) 554× 554 × 312 mm (A250T)

Package Weight:28.0kg (A350T)24.0kg (A250T)
